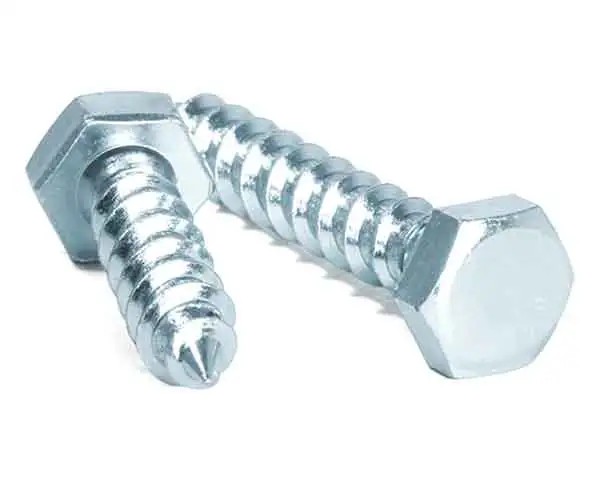

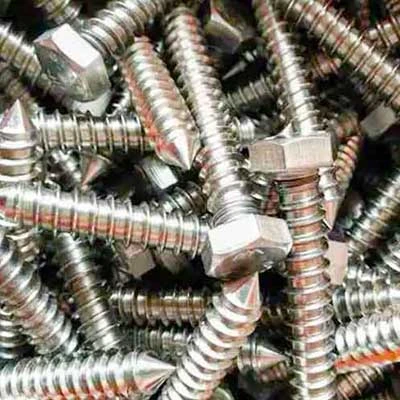

Zinc-plated hexagon head wood screws offer excellent corrosion resistance and high strength, making them ideal for outdoor and structural wood projects. The zinc plating protects against rust, ensuring long-lasting durability in harsh environments.
These screws are designed for easy installation, with a hex head that allows for high torque application, ensuring a secure and tight fit in wood. They are perfect for applications where both strength and corrosion resistance are required, such as decking, fencing, and outdoor structures.
| Name | Wood Screws | Materials | Carbon Steel/Stainless Steel |
| Standards | DIN ISO ANC BSW JIS etc. | Strength level | 4.8 8.8 etc. |
| Size | M4-M20 | Surface finish | ZP\BLACK etc. |
| Length | 20-100 | Samples | Available |

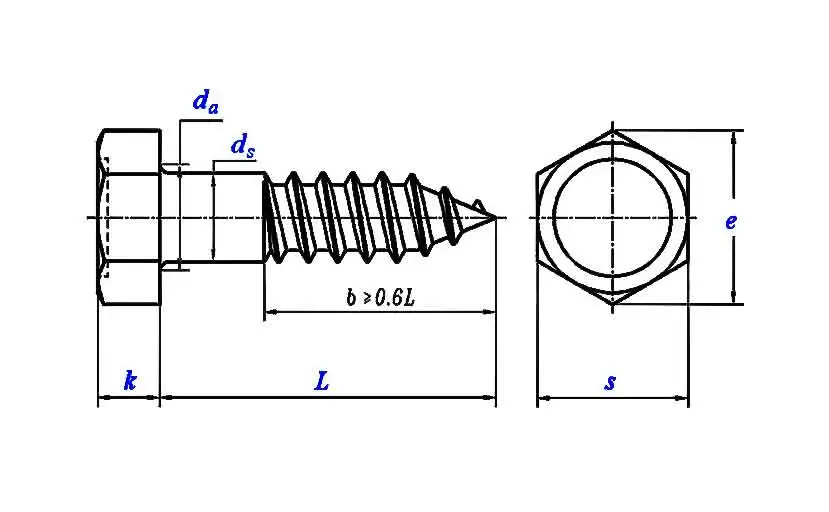

| Thread specification | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 16 | 20 | |
| d | ||||||||||
| ds | maximum value | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 16 | 20 |
| minimum | 3.52 | 4.52 | 5.52 | 6.42 | 7.42 | 9.42 | 11.3 | 15.3 | 19.3 | |
| d a | maximum value | 5 | 6 | 7.2 | 8.2 | 10.2 | 12.2 | 15.2 | 19.2 | 24.4 |
| k | Nominal | 2.8 | 3.5 | 4 | 5 | 5.5 | 7 | 8 | 10 | 13 |
| maximum value | 3.1 | 3.88 | 4.38 | 5.38 | 5.88 | 7.45 | 8.45 | 10.45 | 13.9 | |
| minimum | 2.5 | 3.13 | 3.63 | 4.63 | 5.13 | 6.55 | 7.55 | 9.55 | 12.1 | |
| s | max = nominal | 7 | 8 | 10 | 12 | 13 | 17 | 19 | 24 | 30 |
| minimum | 6.64 | 7.64 | 9.64 | 11.57 | 12.57 | 16.57 | 18.48 | 23.16 | 29.16 | |
| and | minimum | 7.5 | 8.63 | 10.89 | 13.07 | 14.2 | 18.72 | 20.88 | 26.17 | 32.95 |
| Thousand pieces of steel weight ≈kg | - | - | - | - | - | - | - | - | - | |
①,Material:
a) Steel, St is selected by the manufacturer;
b) Stainless steel, Group: A2~A5 Property class: 20H, 25H Standard DIN EN ISO 3506-4;
c) Non-ferrous metals, CuZn=copper-zinc alloy Standard DIN EN 12166
Zinc-plated hexagon head wood screws are designed for durability and corrosion resistance, making them perfect for outdoor and structural wood applications. The zinc plating protects against rust, ensuring long-term performance in harsh environments.
These screws feature a hexagonal head that allows for high torque application, ensuring a tight and secure fit in wood. They are ideal for decking, fencing, and outdoor structures, providing a reliable fastening solution that combines strength with corrosion resistance, ensuring your projects stand the test of time.
