These bolts are used in applications where a secure attachment is essential, such as in construction, automotive, and industrial machinery.

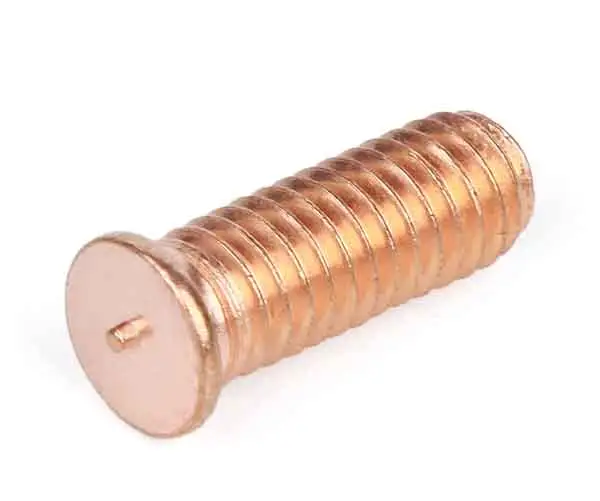

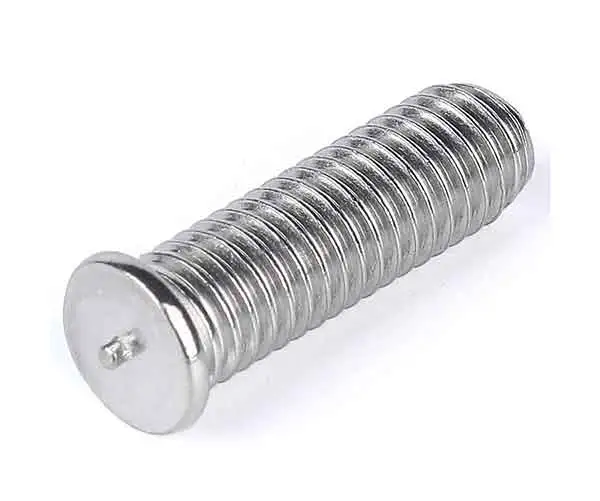

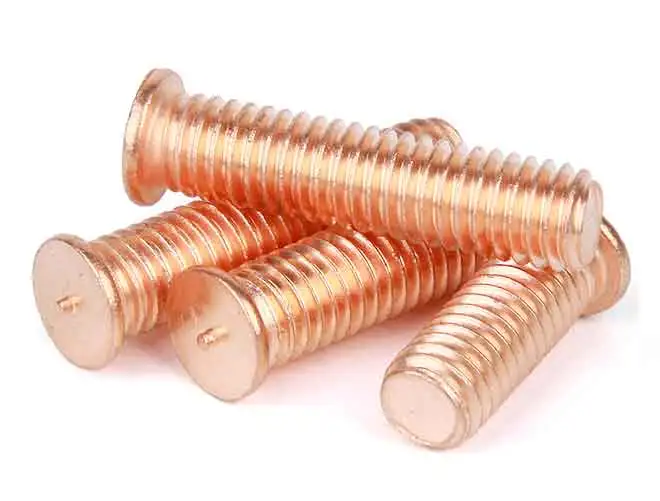

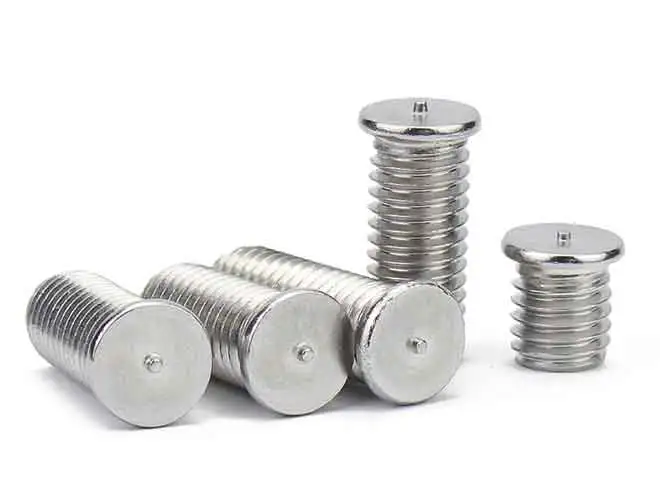

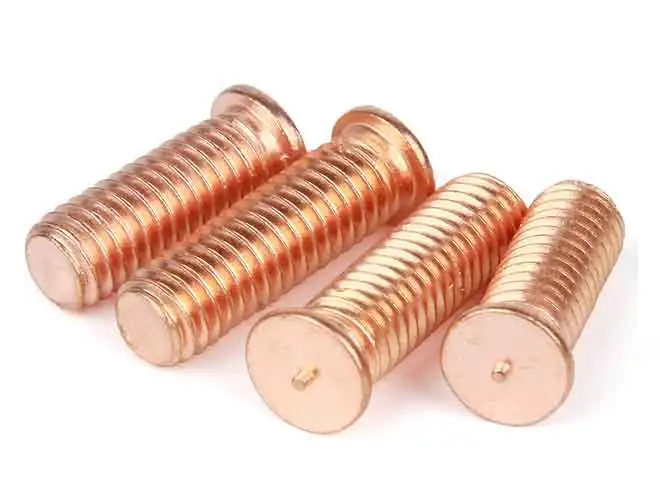

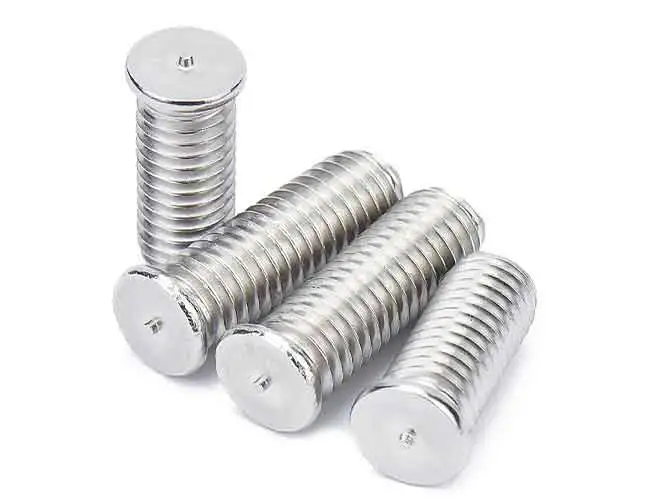

Weld stud bolts are made from high-strength materials to withstand significant loads and stresses. Befast offers a range of weld stud bolts designed to meet the specific needs of different industries.
| Name | DIN32501 Stud Welding | Materials | Carbon Steel/Stainless Steel |
| Standards | DIN ISO ANC BSW JIS etc. | Strength level | 4.8 8.8 10.9 etc. |
| Size | M3-M6 | Surface finish | ZP\BLACK\Plain etc. |
| Length | 20-300 | Samples | Available |

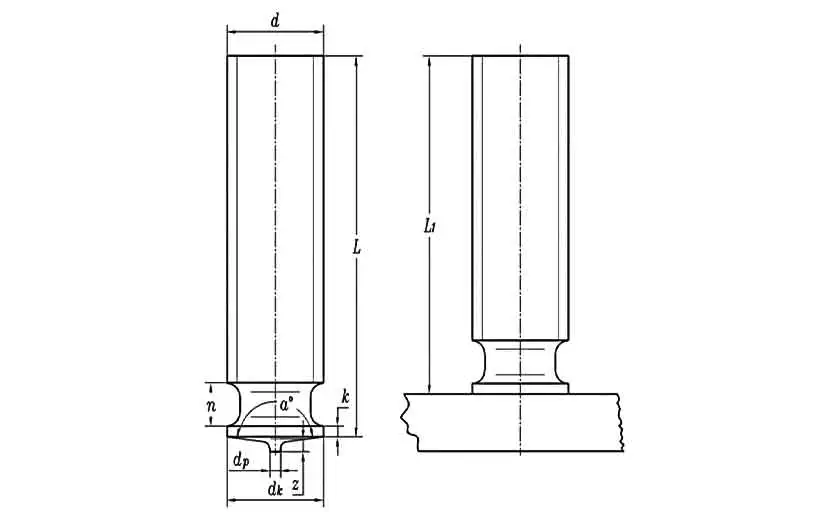

| Thread specification | M3 | M4 | M5 | M6 | ||
| d | ||||||
| P | pitch | 0.5 | 0.7 | 0.8 | 1 | |
| dk | maximum value | 4.7 | 5.8 | 6.7 | 7.7 | |
| minimum | 4.3 | 5.4 | 6.3 | 7.3 | ||
| dp | maximum value | 0.73 | 0.73 | 0.83 | 0.83 | |
| minimum | 0.57 | 0.57 | 0.67 | 0.67 | ||
| With | maximum value | 0.6 | 0.6 | 0.85 | 0.85 | |
| minimum | 0.5 | 0.5 | 0.75 | 0.75 | ||
| k | 0.7~1.4 | 0.7~1.4 | 0.8~1.4 | 0.8~1.4 | ||
| n | maximum value | 1.5 | 1.5 | 2 | 2 | |
Weld stud bolts offer several advantages, including a strong, permanent connection. Once welded, these bolts are highly resistant to loosening and provide a secure attachment that can withstand heavy loads.
They are also easy to install, with the welding process creating a bond that is stronger than the bolt itself. This makes them ideal for critical applications where reliability and strength are paramount. Befast weld stud bolts are designed to meet the highest standards of quality and performance.
