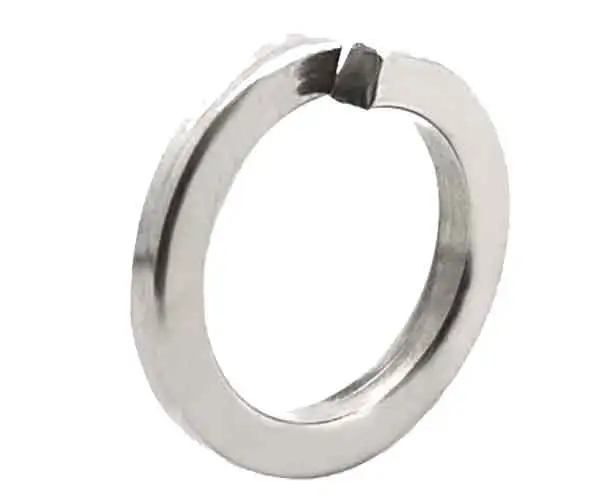

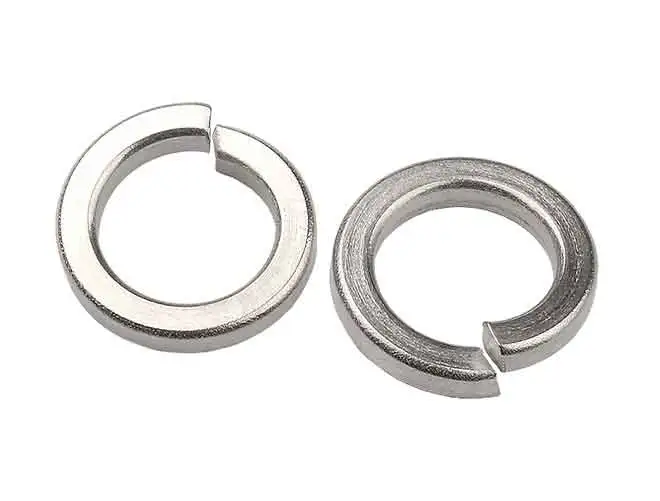

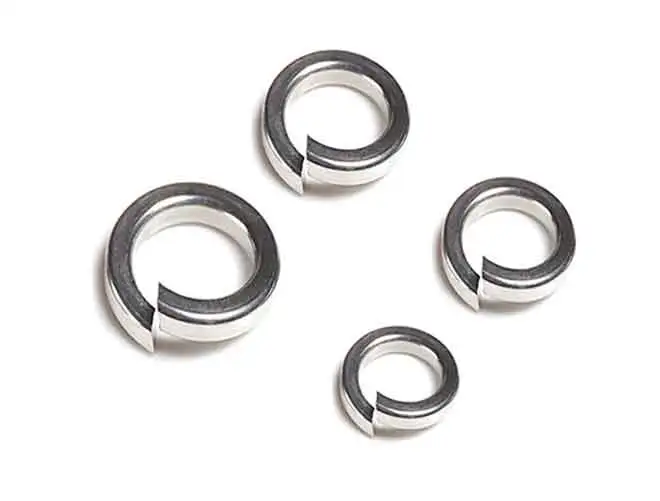

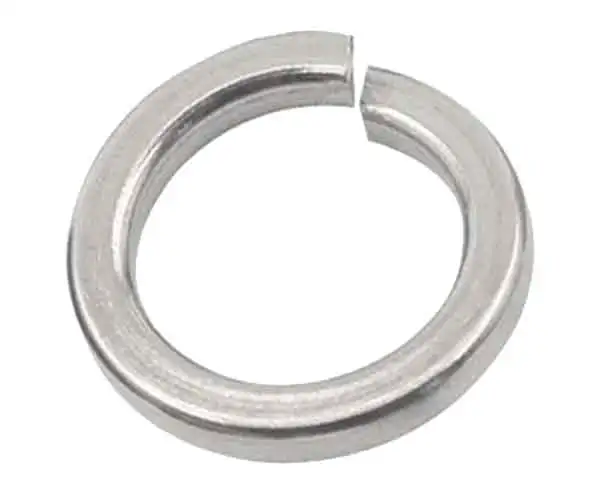

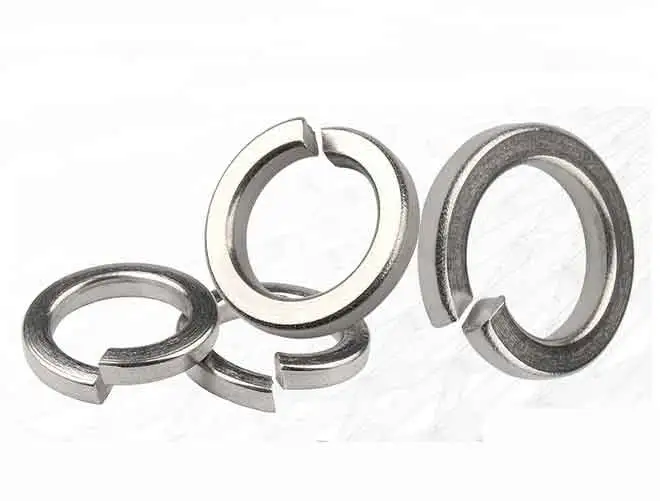

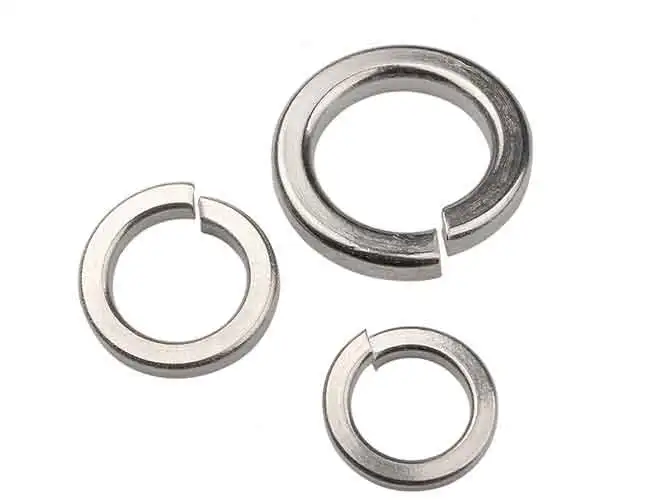

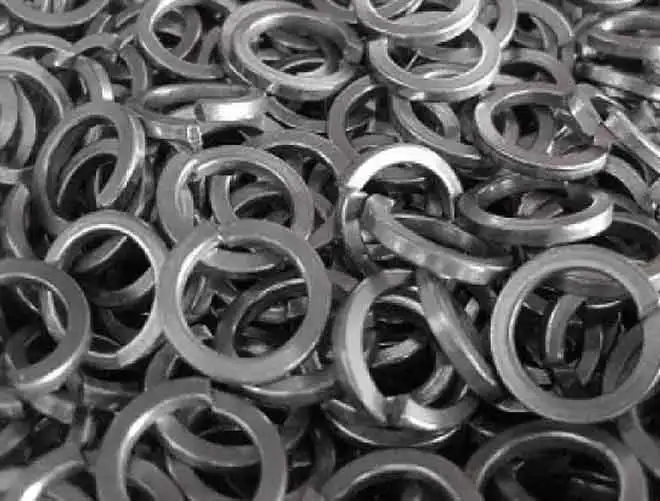

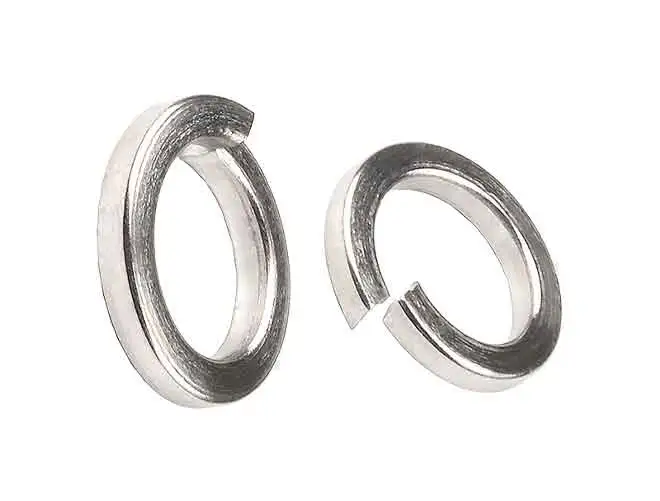

Our stainless steel spring washers offer excellent corrosion resistance and are designed to maintain consistent tension in demanding environments.
These washers are perfect for applications requiring both durability and flexibility, keeping assemblies secure and stable. Each product is rigorously tested for long-term reliability.
| Name | Spring Lock Washers | Materials | Carbon Steel/Stainless Steel |
| Standards | DIN ISO ANC BSW JIS etc. | Strength level | 4.8 8.8 etc. |
| Size | M3-M100 | Surface finish | ZPBLACKHDG etc. |
| Length | 0.8-8 | Samples | Available |
| Specification | F3 | Φ3.5 | F4 | F5 | F6 | Φ7 | F8 | Φ10 | F12 | F14 | F16 | F18 | Φ20 | F22 | F24 | F27 | ||
| d 1 | minimum | 3.1 | 3.6 | 4.1 | 5.1 | 6.1 | 7.1 | 8.1 | 10.2 | 12.2 | 14.2 | 16.2 | 18.2 | 20.2 | 22.5 | 24.5 | 27.5 | |
| maximum value | 3.4 | 3.9 | 4.4 | 5.4 | 6.5 | 7.5 | 8.5 | 10.7 | 12.7 | 14.7 | 17 | 19 | 21.2 | 23.5 | 25.5 | 28.5 | ||
| d 2 | maximum value | 6.2 | 6.7 | 7.6 | 9.2 | 11.8 | 12.8 | 14.8 | 18.1 | 21.1 | 24.1 | 27.4 | 29.4 | 33.6 | 35.9 | 40 | 43 | |
| b | Nominal | 1.3 | 1.3 | 1.5 | 1.8 | 2.5 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5 | 6 | 6 | 7 | 7 | |
| maximum value | 1.4 | 1.4 | 1.6 | 1.9 | 2.65 | 2.65 | 3.15 | 3.7 | 4.2 | 4.7 | 5.2 | 5.2 | 6.2 | 6.2 | 7.25 | 7.25 | ||
| minimum | 1.2 | 1.2 | 1.4 | 1.7 | 2.35 | 2.35 | 2.85 | 3.3 | 3.8 | 4.3 | 4.8 | 4.8 | 5.8 | 5.8 | 6.75 | 6.75 | ||
| s | Nominal | 0.8 | 0.8 | 0.9 | 1.2 | 1.6 | 1.6 | 2 | 2.2 | 2.5 | 3 | 3.5 | 3.5 | 4 | 4 | 5 | 5 | |
| maximum value | 0.9 | 0.9 | 1 | 1.3 | 1.7 | 1.7 | 2.1 | 2.35 | 2.65 | 3.15 | 3.7 | 3.7 | 4.2 | 4.2 | 5.2 | 5.2 | ||
| minimum | 0.7 | 0.7 | 0.8 | 1.1 | 1.5 | 1.5 | 1.9 | 2.05 | 2.35 | 2.85 | 3.3 | 3.3 | 3.8 | 3.8 | 4.8 | 4.8 | ||
| h | minimum | 1.9 | 1.9 | 2.1 | 2.7 | 3.6 | 3.6 | 4.6 | 5 | 5.8 | 6.8 | 7.8 | 7.8 | 8.8 | 8.8 | 11 | 11 | |
| maximum value | 2.1 | 2.2 | 2.5 | 3.2 | 4.2 | 4.2 | 5.4 | 5.9 | 6.8 | 8 | 9.2 | 9.2 | 10.4 | 10.4 | 13 | 13 | ||
| k | 0.15 | 0.15 | 0.15 | 0.15 | 0.2 | 0.2 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | ||
| r | 0.2 | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.5 | 0.5 | 1 | 1 | 1 | 1 | 1 | 1 | 1.6 | 1.6 | ||
| Thousand pieces (steel)≈kg | 0.11 | 0.12 | 0.18 | 0.36 | 0.83 | 0.93 | 1.6 | 2.53 | 3.82 | 6.01 | 8.91 | 9.73 | 15.2 | 16.5 | 26.2 | 28.7 | ||
| Applicable thread | 3 | 3.5 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | twenty two | twenty four | 27 | ||
| Specification | Φ30 | F36 | F39 | F42 | F45 | F48 | F52 | F56 | Φ60 | F64 | F68 | F72 | Φ80 | Φ90 | Φ100 | ||
| d 1 | minimum | 30.5 | 36.5 | 39.5 | 42.5 | 45.5 | 49 | 53 | 57 | 61 | 65 | 69 | 73 | 81 | 91 | 101 | |
| maximum value | 31.7 | 37.7 | 40.7 | 43.7 | 46.7 | 50.5 | 54.5 | 58.5 | 62.5 | 66.5 | 70.5 | 74.5 | 82.5 | 92.5 | 102.5 | ||
| d 2 | maximum value | 48.2 | 58.2 | 61.2 | 68.2 | 71.2 | 75 | 83 | 87 | 91 | 95 | 99 | 103 | 111 | 121 | 131 | |
| b | Nominal | 8 | 10 | 10 | 12 | 12 | 12 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | 14 | |
| maximum value | 8.25 | 10.25 | 10.25 | 12.25 | 12.25 | 12.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | 14.25 | ||
| minimum | 7.75 | 9.75 | 9.75 | 11.75 | 11.75 | 11.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | 13.75 | ||
| s | Nominal | 6 | 6 | 6 | 7 | 7 | 7 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | |
| maximum value | 6.2 | 6.2 | 6.2 | 7.25 | 7.25 | 7.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | 8.25 | ||
| minimum | 5.8 | 5.8 | 5.8 | 6.75 | 6.75 | 6.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | 7.75 | ||
| h | minimum | 13.6 | 13.6 | 13.6 | 15.6 | 15.6 | 15.6 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | 18 | |
| maximum value | 16.1 | 16.1 | 16.1 | 18.4 | 18.4 | 18.4 | 21.2 | 21.2 | 21.2 | 21.2 | 21.2 | 21.2 | 21.2 | 21.2 | 21.2 | ||
| k | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | ||
| r | 1.6 | 1.6 | 1.6 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | ||
| Thousand pieces (steel)≈kg | 44.3 | 67.3 | 71.7 | 111 | 117 | 123 | 182 | 193 | 203 | 218 | 228 | 240 | 262 | 290 | 318 | ||
| Applicable thread | 30 | 36 | 39 | 42 | 45 | 48 | 52 | 56 | 60 | 64 | 68 | 72 | 80 | 90 | 100 | ||
Our stainless steel spring washers offer excellent corrosion resistance and long-lasting durability in varying environments.
They deliver reliable load distribution and maintain optimal tension, essential for secure assemblies. Every washer is quality-tested, providing assurance of long-term performance.
