Stainless steel domed head blind rivets are engineered for exceptional durability and corrosion resistance, making them ideal for demanding environments such as marine, automotive, and construction industries. These rivets provide a strong, secure hold even in materials exposed to moisture and chemicals.
The domed head design ensures a smooth, clean finish, adding both strength and aesthetic appeal to the assembly. Easy to install, these rivets offer reliable performance in high-stress applications, ensuring long-lasting connections that withstand the test of time.

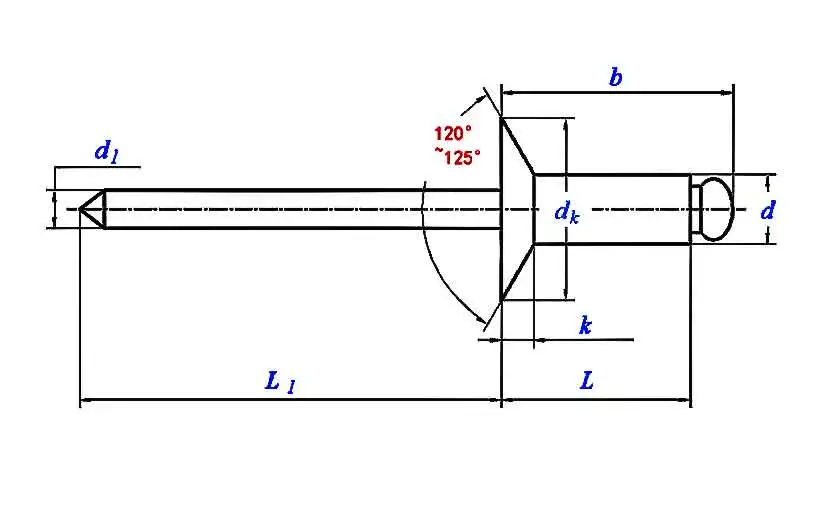

| Nominal Diameter | Φ2.4 | Φ3.2 | Φ4 | Φ4.8 | Φ6.4 | |
| d | ||||||
| d | max | 2.48 | 3.28 | 4.08 | 4.88 | 6.48 |
| min | 2.25 | 3.05 | 3.85 | 4.65 | 6.25 | |
| dk | max | 5 | 6.7 | 8.4 | 10.1 | 13.4 |
| min | 4.2 | 5.8 | 6.9 | 8.3 | 11.6 | |
| k | max | 1 | 1.3 | 1.7 | 2 | 2.7 |
| d1 | max | 1.6 | 2.1 | 2.55 | 3.05 | 4 |
| L1 | min | 25 | 25 | 25 | 27 | 27 |
| b | max | L(max)+3 | L(max)+3 | L(max)+3.5 | L(max)+4 | L(max)+5.5 |
| Shear load/N(min) | 250 | 500 | 850 | 1160 | 2050 | |
| Tensile load/N(min) | 350 | 670 | 1020 | 1420 | 2490 | |
| Mandrel break load/N(max) | 1100 | 1800 | 2700 | 3700 | 6300 | |
| Head retention test load(N) | 10 | 15 | 20 | 25 | 50 | |
| Recommended range of riveting | - | - | - | - | - | |
Stainless steel domed head blind rivets provide strong, corrosion-resistant fastening for demanding applications. They are ideal for industries such as automotive, construction, and marine, where exposure to moisture and chemicals is common.
The domed head design ensures a smooth, finished appearance while providing a secure hold in a variety of materials, including metal and plastic. These rivets are easy to install and offer long-lasting performance, ensuring that your assemblies remain secure over time, even in harsh environments.
