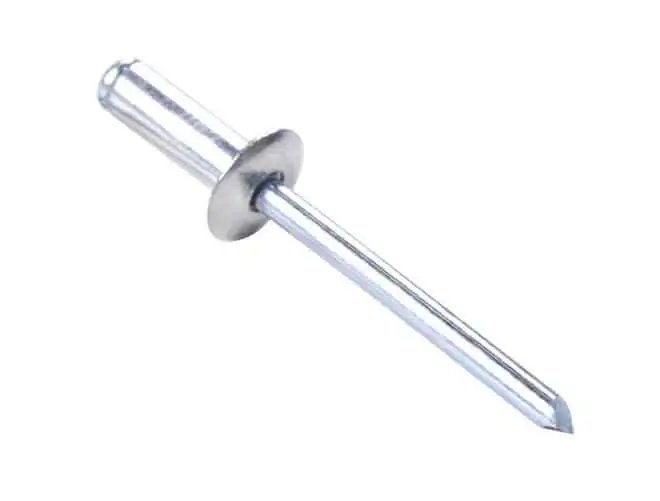

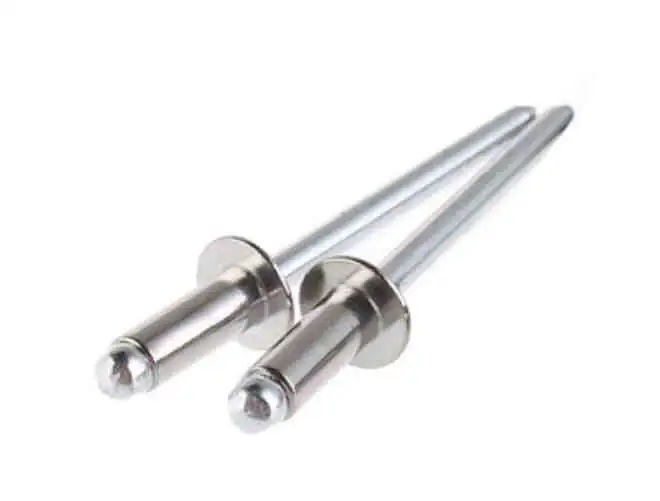

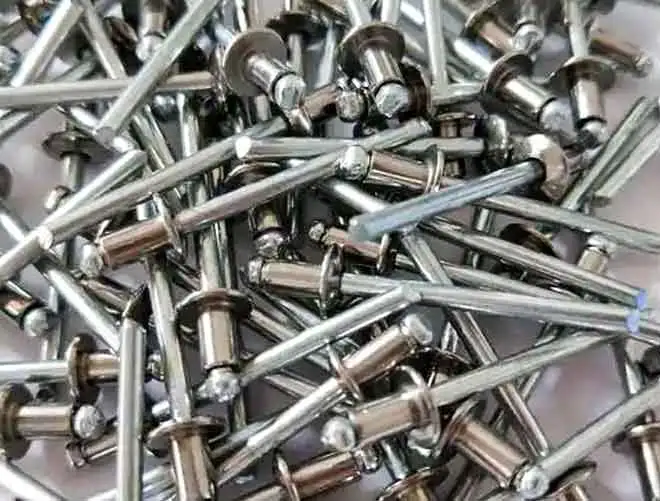

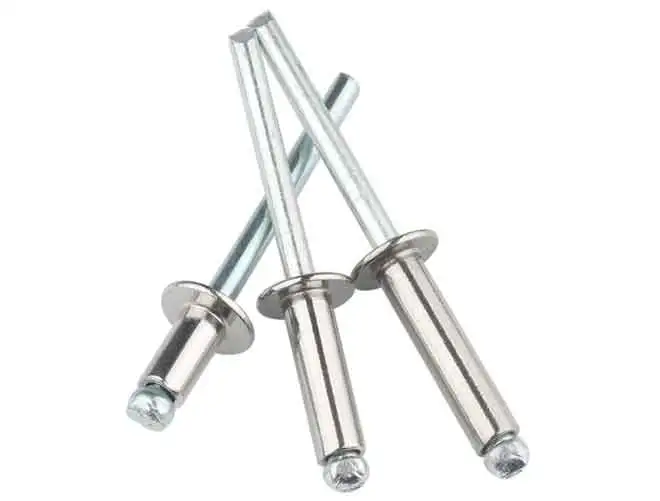

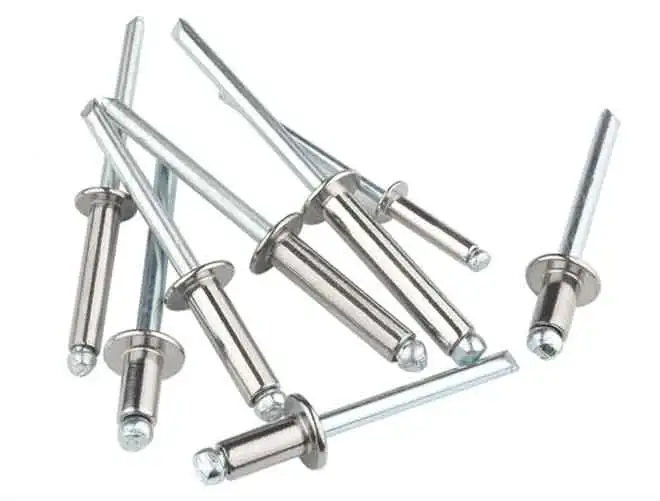

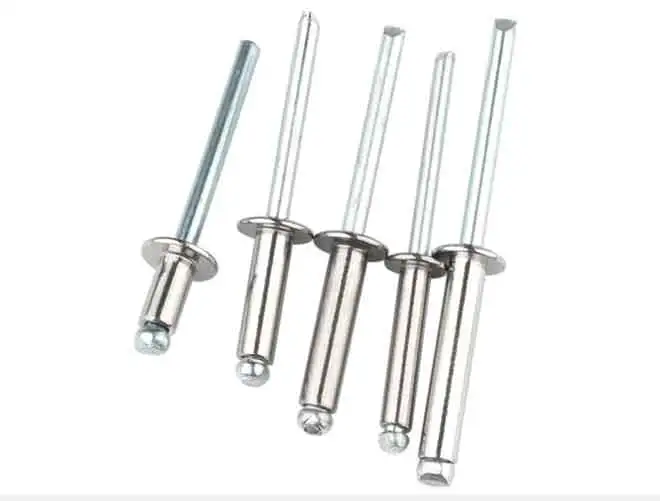

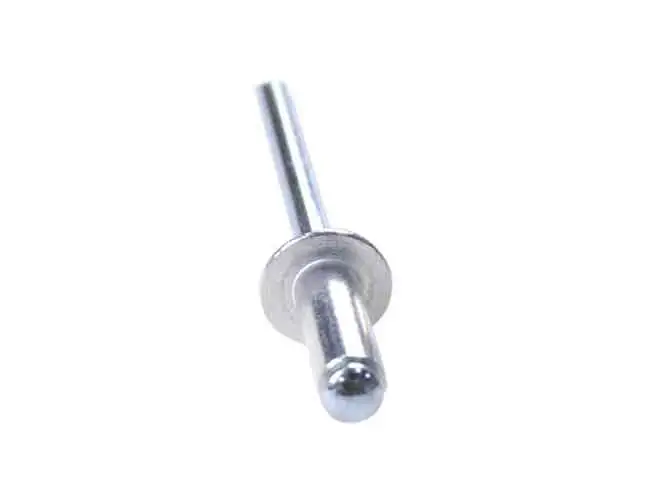

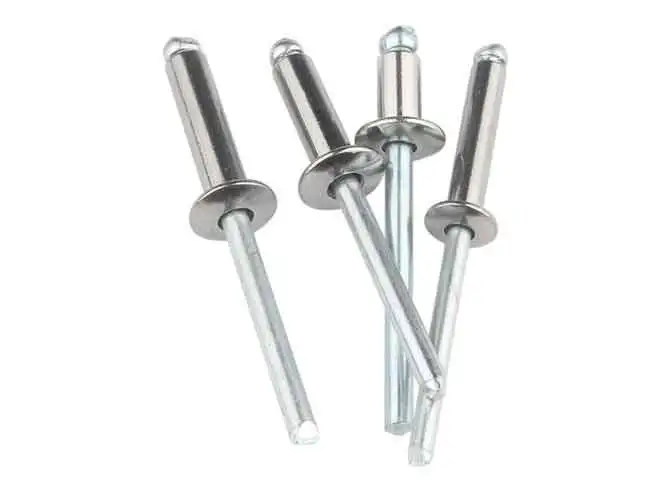

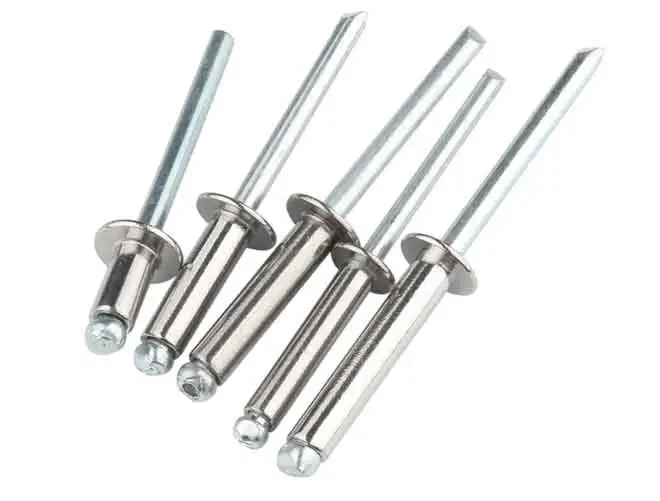

Aluminum/Stainless steel domed head blind rivets combine the best of both materials, offering the lightweight advantage of aluminum with the strength and corrosion resistance of stainless steel. These rivets are ideal for applications where both weight savings and durability are essential.
The aluminum body ensures easy installation and minimal weight, while the stainless steel mandrel provides a strong, long-lasting hold. This combination makes them perfect for use in harsh environments, including marine, automotive, and industrial applications, where reliable and lightweight fastening is critical.
| Nominal Diameter | Φ2.4 | Φ3.2 | Φ4 | Φ4.8 | Φ6.4 | |
| d | ||||||
| d | max | 2.48 | 3.28 | 4.08 | 4.88 | 6.48 |
| min | 2.25 | 3.05 | 3.85 | 4.65 | 6.25 | |
| dk | max | 5 | 6.7 | 8.4 | 10.1 | 13.4 |
| min | 4.2 | 5.8 | 6.9 | 8.3 | 11.6 | |
| k | max | 1 | 1.3 | 1.7 | 2 | 2.7 |
| d1 | max | 1.6 | 2.1 | 2.55 | 3.05 | 4 |
| L1 | min | 25 | 25 | 25 | 27 | 27 |
| b | max | L(max)+3 | L(max)+3 | L(max)+3.5 | L(max)+4 | L(max)+5.5 |
| Shear load/N(min) | 250 | 500 | 850 | 1160 | 2050 | |
| Tensile load/N(min) | 350 | 670 | 1020 | 1420 | 2490 | |
| Mandrel break load/N(max) | 1100 | 1800 | 2700 | 3700 | 6300 | |
| Head retention test load(N) | 10 | 15 | 20 | 25 | 50 | |
| Recommended range of riveting | - | - | - | - | - | |
Aluminum/Stainless steel domed head blind rivets combine the lightweight benefits of aluminum with the durability and corrosion resistance of stainless steel. This combination makes them ideal for applications where both weight reduction and long-term performance are essential.
These rivets are particularly suited for use in harsh environments, such as marine, automotive, and industrial settings. The aluminum body ensures easy handling and installation, while the stainless steel mandrel provides a secure, long-lasting hold, making them a versatile solution for critical fastening needs.
