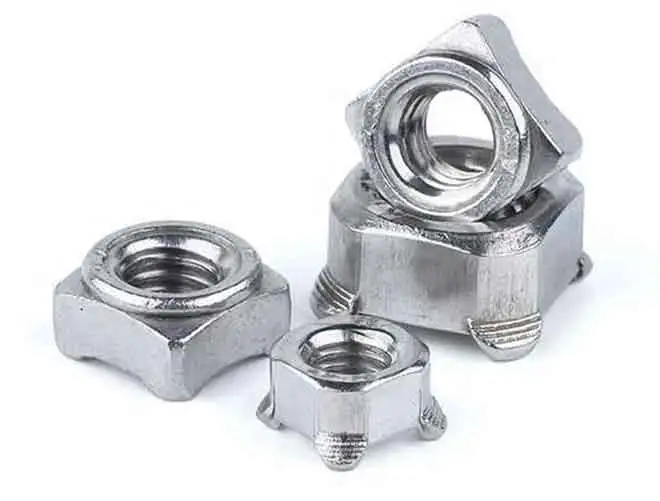

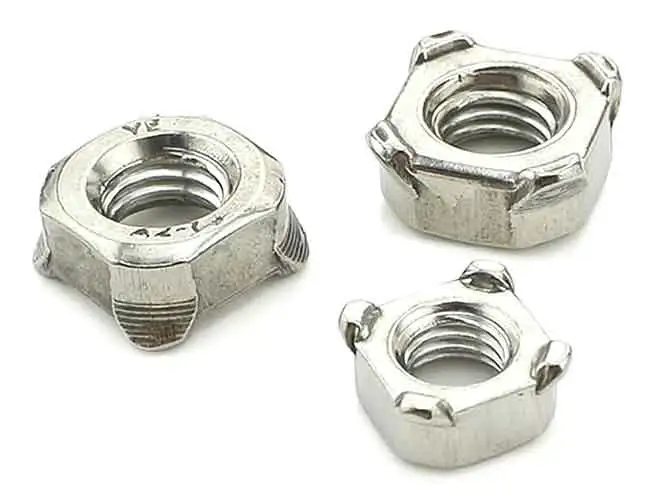

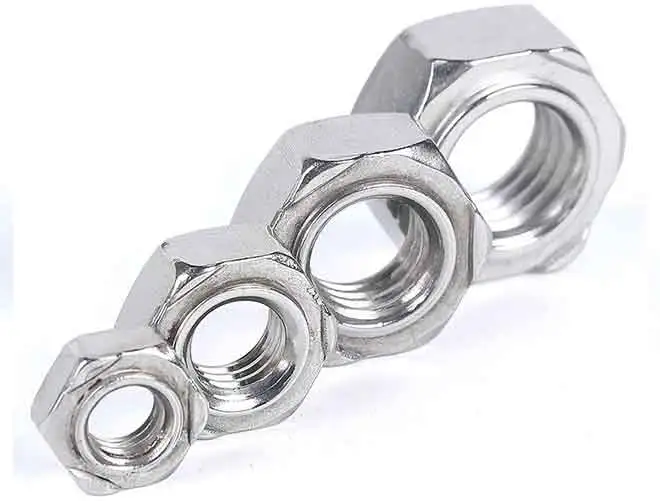

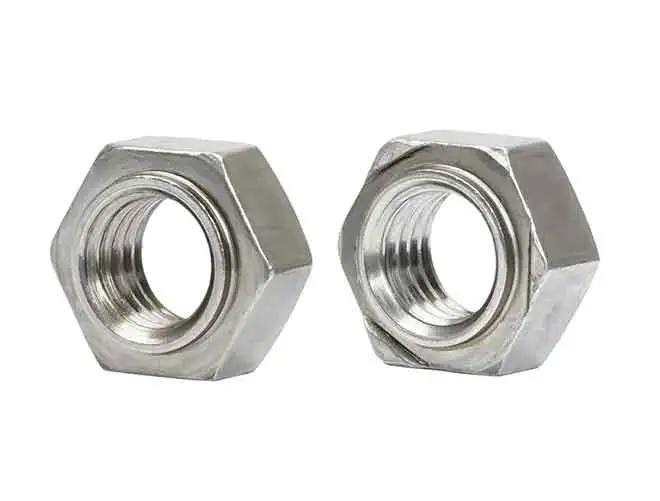

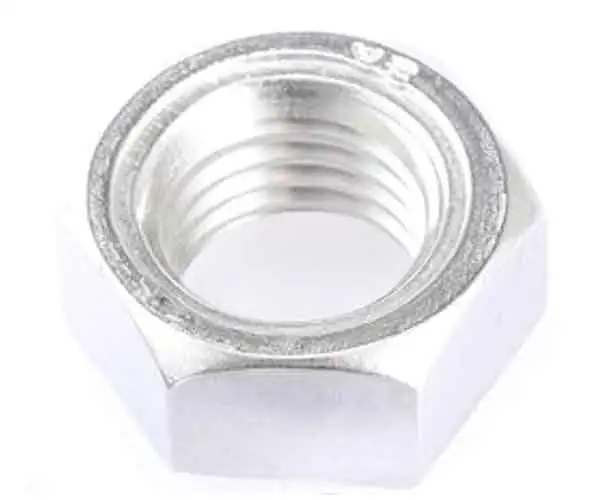

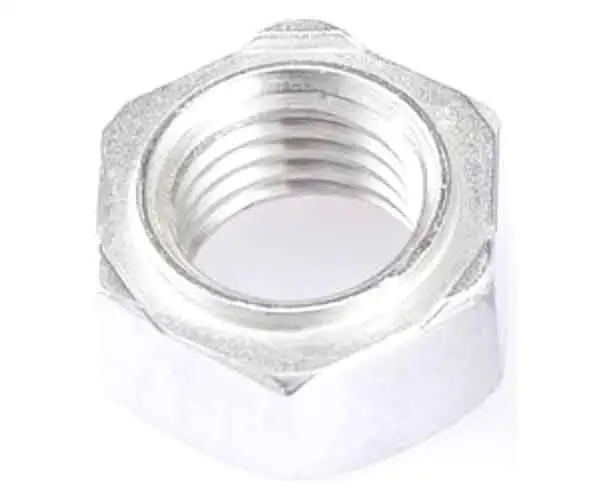

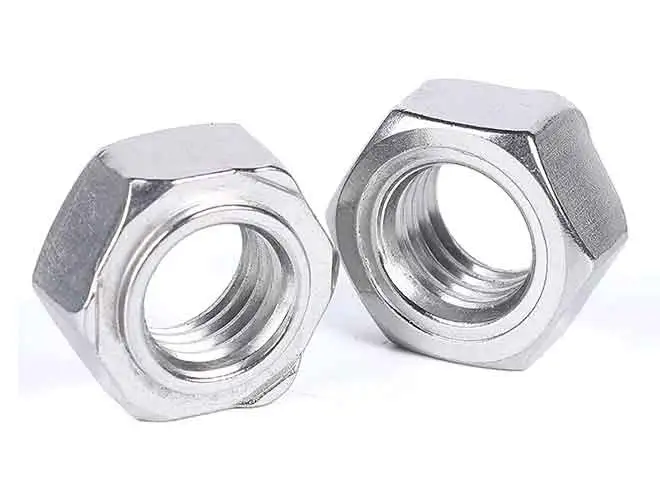

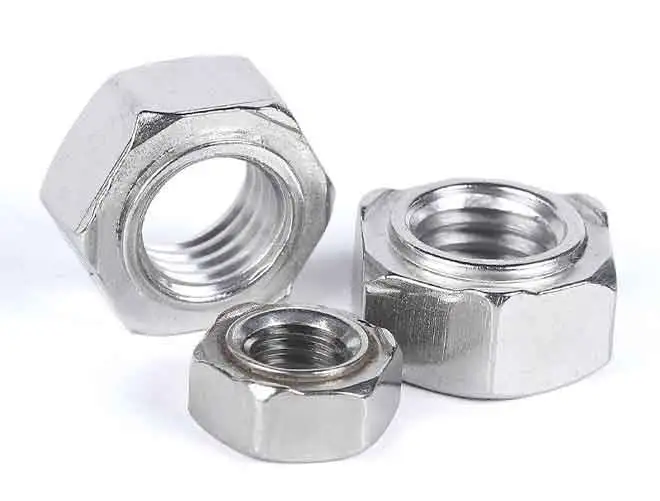

Hex weld nuts are designed to be welded onto a metal surface. This design provides a permanent and robust threaded connection, ideal for industrial and automotive applications.
The welded design ensures permanence. Hex weld nuts are perfect for tasks requiring strong and permanent threaded connections. Befast hex weld nuts meet industry standards for strength and performance.
| Name | DIN929 Hex Weld Nuts | Materials | Carbon Steel/Stainless Steel |
| Standards | DIN ISO ANC BSW JIS etc. | Strength level | 4 5 8 10 12 A2-70 A4-70 A4-80 etc. |
| Size | M3-M16 | Surface finish | ZP\HDG\BLACK\Dacromet etc. |
| Length | 1-32 | Samples | Available |

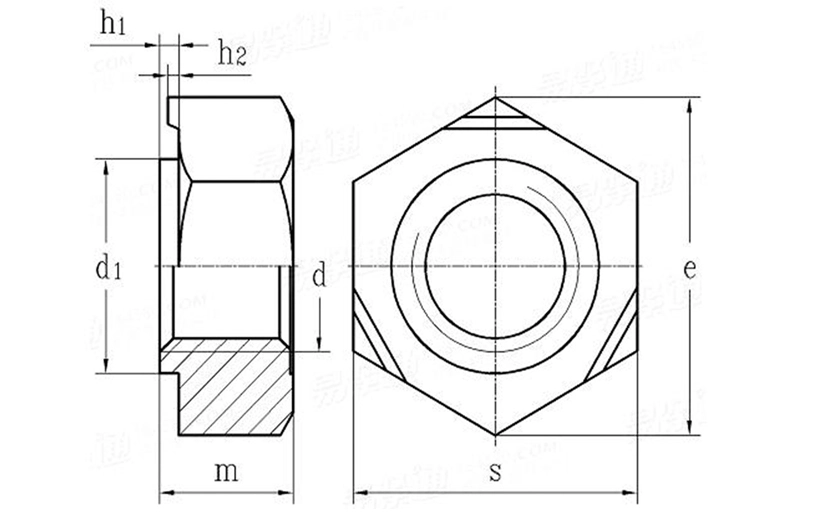

| Thread specification | M3 | M4 | M5 | M6 | (M7) | M8 | M10 | 7/16 UNF-2B | M12 | (M14) | M16 | |||
| d | ||||||||||||||
| P | pitch | coarse teeth | 0.5 | 0.7 | 0.8 | 1 | 1 | 1.25 | 1.5 | / | 1.75 | 2 | 2 | |
| fine teeth 1 | / | / | / | / | / | 1 | 1.25 | / | 1.5 | 1.5 | 1.5 | |||
| fine teeth 2 | / | / | / | / | / | / | 1 | 20 | 1.25 | / | / | |||
| h 1 | maximum value | 0.55 | 0.65 | 0.7 | 0.75 | 0.8 | 0.9 | 1.15 | 1.4 | 1.4 | 1.8 | 1.8 | ||
| minimum | 0.45 | 0.55 | 0.6 | 0.6 | 0.65 | 0.75 | 0.95 | 1.2 | 1.2 | 1.6 | 1.6 | |||
| h 2 | maximum value | 0.25 | 0.35 | 0.4 | 0.4 | 0.5 | 0.5 | 0.65 | 0.8 | 0.8 | 1 | 1 | ||
| minimum | 0.15 | 0.25 | 0.3 | 0.3 | 0.35 | 0.35 | 0.5 | 0.6 | 0.6 | 0.8 | 0.8 | |||
| m | maximum value | 3 | 3.5 | 4 | 5 | 5.5 | 6.5 | 8 | 10 | 10 | 11 | 13 | ||
| minimum | 2.75 | 3.2 | 3.7 | 4.7 | 5.2 | 6.14 | 7.64 | 9.64 | 9.64 | 10.57 | 12.57 | |||
| s | maximum value | 7.5 | 9 | 10 | 11 | 12 | 14 | 17 | 19 | 19 | twenty two | twenty four | ||
| minimum | 7.28 | 8.78 | 9.78 | 10.73 | 11.73 | 13.73 | 16.73 | 18.67 | 18.67 | 21.67 | 23.67 | |||
| d 1 | Nominal | 4.5 | 6 | 7 | 8 | 9 | 10.5 | 12.5 | 13.5 | 14.8 | 16.8 | 18.8 | ||
| maximum value | 4.47 | 5.97 | 6.96 | 7.96 | 8.96 | 10.45 | 12.45 | 13.45 | 14.75 | 16.75 | 18.735 | |||
| minimum | 4.395 | 5.895 | 6.87 | 7.87 | 8.87 | 10.34 | 12.34 | 13.34 | 14.64 | 16.64 | 18.605 | |||
| Thousand pieces (steel)≈kg | 0.78 | 1.13 | 1.73 | 2.5 | 3.24 | 5.27 | 9.58 | 14 | 13.7 | 21.3 | 28.5 | |||
Hex weld nuts offer benefits like secure and permanent fastening. Their weldable design ensures they stay in place, providing a reliable connection that withstands high stress and vibration.
The permanence enhances reliability. Hex weld nuts provide dependable performance in demanding environments, ensuring secure connections. Befast hex weld nuts meet industry standards.
