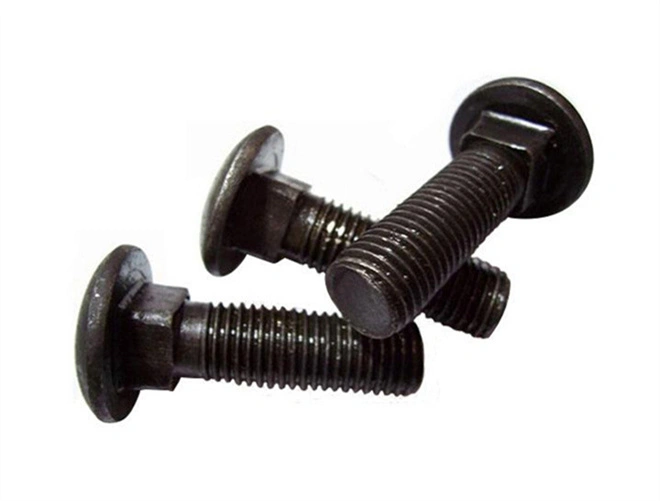

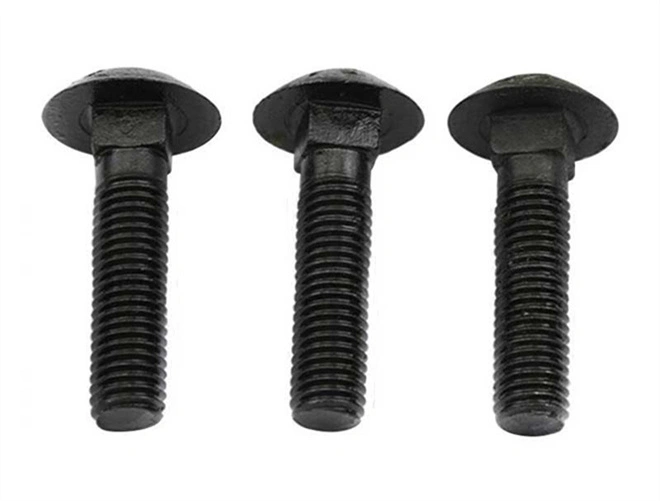

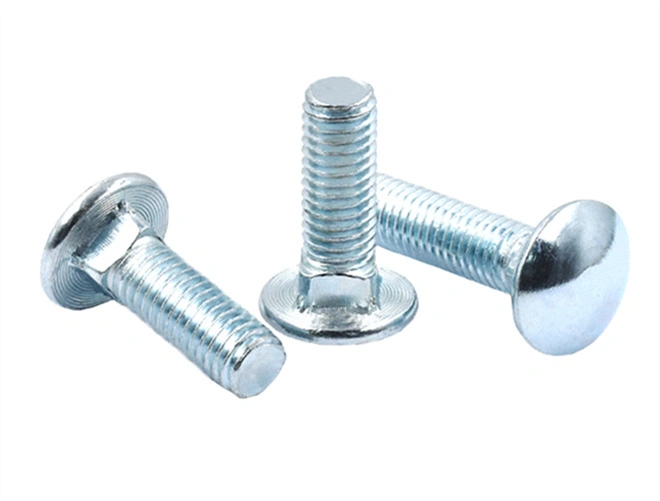

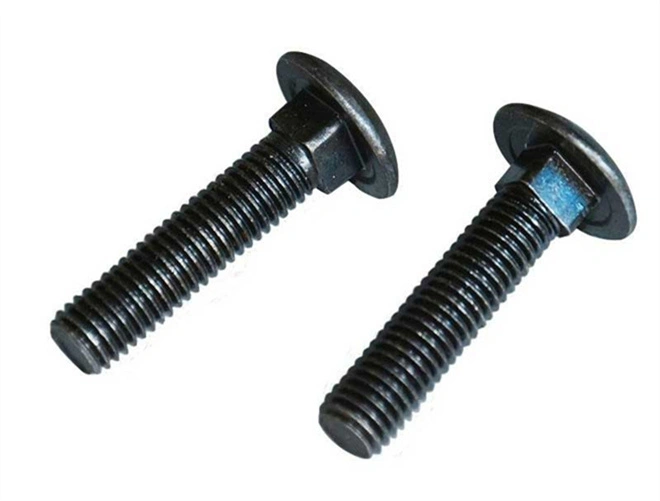

Grade 8.8 carriage bolts are designed for industrial uses where safety and long-term performance are paramount.
Befast’s Grade 8.8 Carriage Bolts are manufactured to exacting standards, providing superior resistance to corrosion and wear while maintaining their strength under heavy loads.
| Name | Carriage Bolts | Materials | Carbon Steel/Stainless Steel |
| Standards | DIN ISO ANC BSW JIS etc. | Strength level | 4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80 |
| Size | M3-M50 | Surface finish | ZPHDGBLACKDacromet etc. |
| Length | 15-500 | Samples | Available |

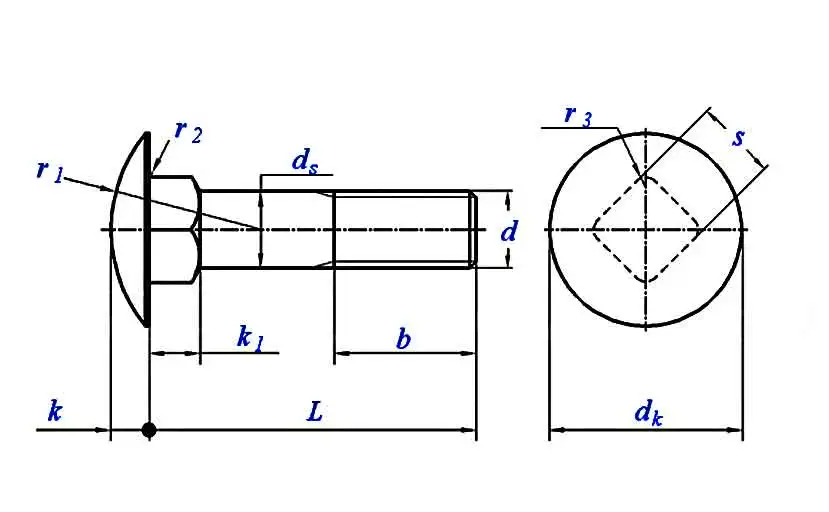

| Thread specification | M5 | M6 | M8 | M10 | M12 | M16 | M20 | |
| d | ||||||||
| P | pitch | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 |
| b | L≤125 | 16 | 18 | twenty two | 26 | 30 | 38 | 46 |
| 125＜L≤200 | twenty two | twenty four | 28 | 32 | 36 | 44 | 52 | |
| L>200 | - | - | 41 | 45 | 49 | 57 | 65 | |
| dk | maximum value | 13.55 | 16.55 | 20.65 | 24.65 | 30.65 | 38.8 | 46.8 |
| minimum | 12.45 | 15.45 | 19.35 | 23.35 | 29.35 | 37.2 | 45.2 | |
| ds | maximum value | 5 | 6 | 8 | 10 | 12 | 16 | 20 |
| minimum | 4.52 | 5.52 | 7.42 | 9.42 | 11.3 | 15.3 | 19.16 | |
| k 1 | maximum value | 4.1 | 4.6 | 5.6 | 6.6 | 8.75 | 12.9 | 15.9 |
| minimum | 2.9 | 3.4 | 4.4 | 5.4 | 7.25 | 11.1 | 14.1 | |
| k | maximum value | 3.3 | 3.88 | 4.88 | 5.38 | 6.95 | 8.95 | 11.05 |
| minimum | 2.7 | 3.12 | 4.12 | 4.62 | 6.05 | 8.05 | 9.95 | |
| r 1 | ≈ | 10.7 | 12.6 | 16 | 19.2 | 24.1 | 29.3 | 33.9 |
| r 2 | maximum value | 0.5 | 0.5 | 0.5 | 0.5 | 1 | 1 | 1 |
| r 3 | maximum value | 0.75 | 0.9 | 1.2 | 1.5 | 1.8 | 2.4 | 3 |
| s | maximum value | 5.48 | 6.48 | 8.58 | 10.58 | 12.7 | 16.7 | 20.84 |
| minimum | 4.52 | 5.52 | 7.42 | 9.42 | 11.3 | 15.3 | 19.16 | |
| Thousand pieces of steel weight ≈kg | - | - | - | - | - | - | - | |
| thread length b | - | - | - | - | - | - | - | |
Befast’s Grade 8.8 Carriage Bolts provide enhanced tensile strength and are perfect for medium-duty applications. With a tensile strength of 800 MPa, they offer excellent load-bearing capacity and are resistant to deformation under heavy stress.
Manufactured to ISO standards, our carriage bolts are durable and reliable. With direct sales and bulk ordering, we ensure you get the best value for your purchase.
