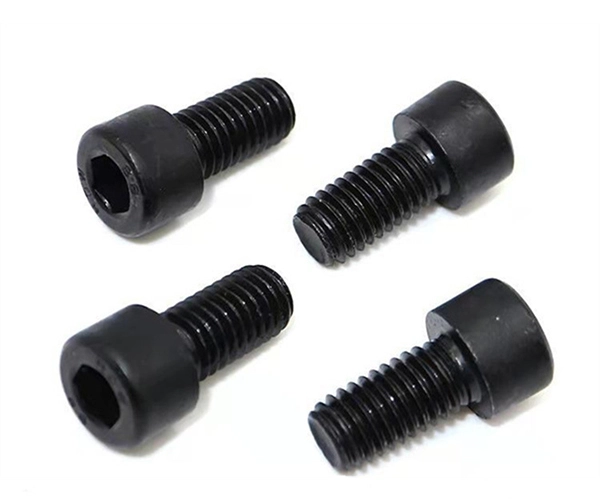

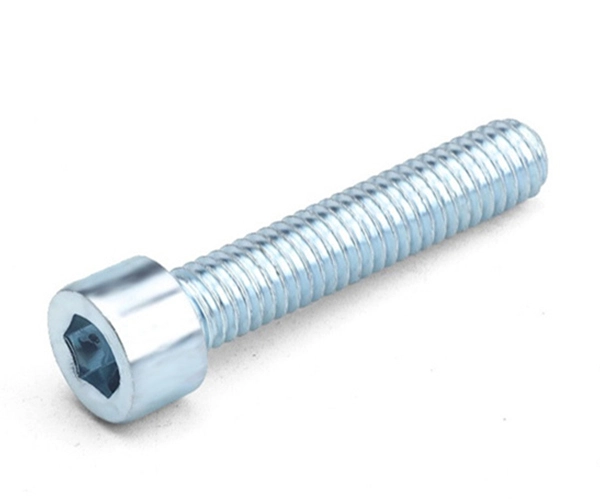

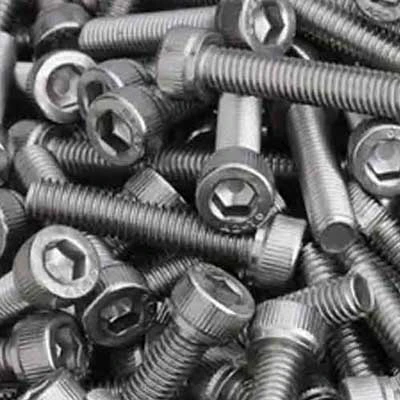

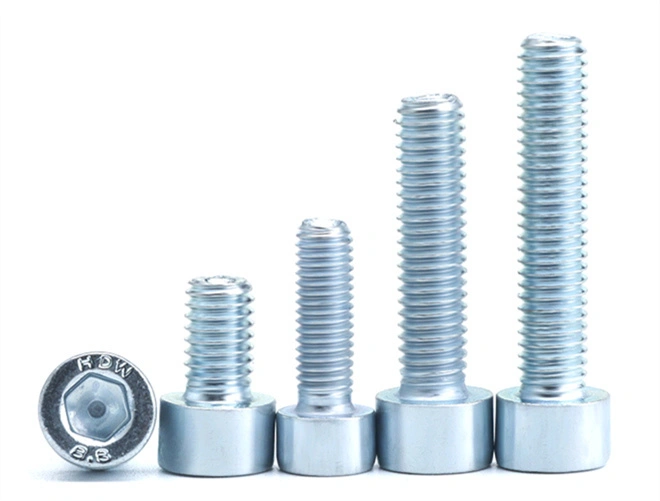

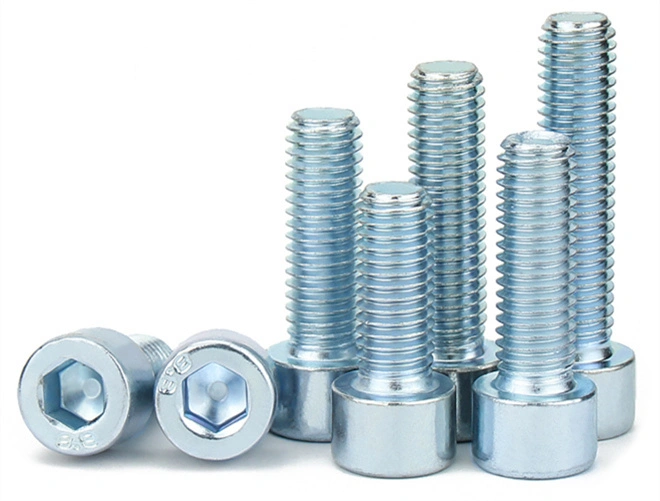

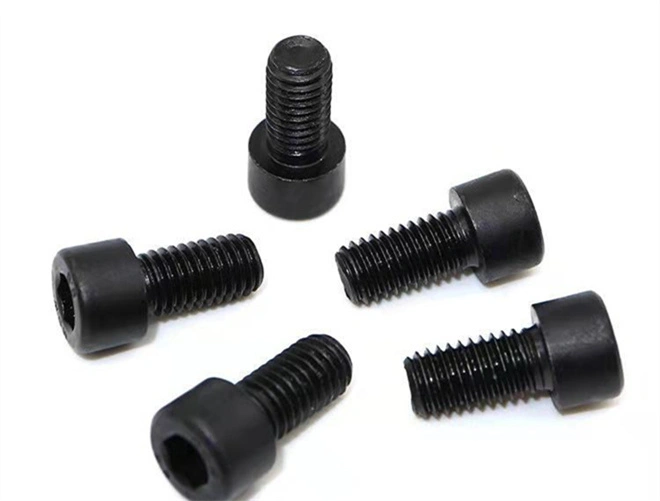

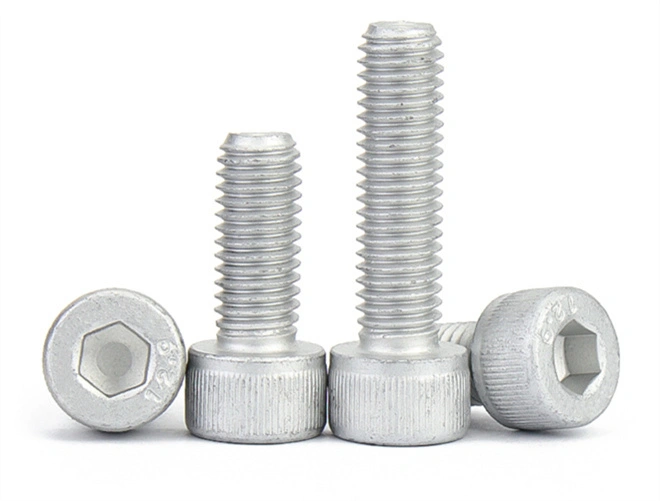

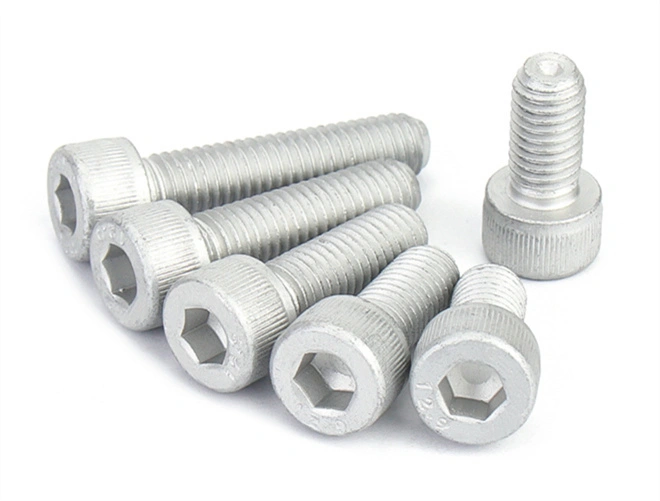

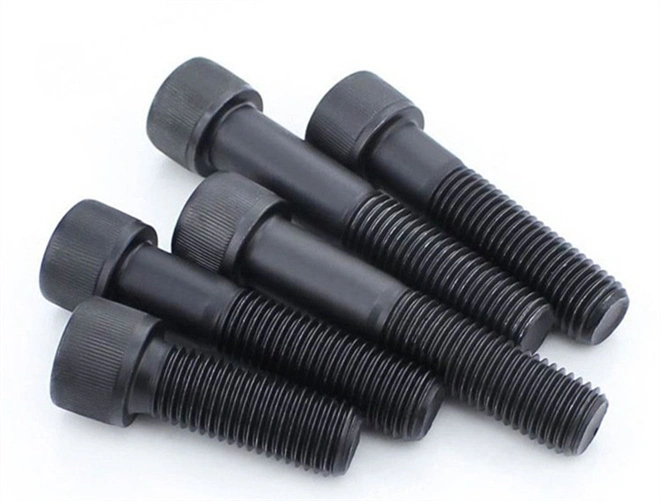

Grade 8.8 10.9 12.9 high strength tensile hexagon socket allen screws are ideal for use in machinery, automotive, and structural applications where high performance is required.
Made from carbon or alloy steel, they undergo heat treatment to enhance strength and provide exceptional durability under heavy loads and extreme conditions.

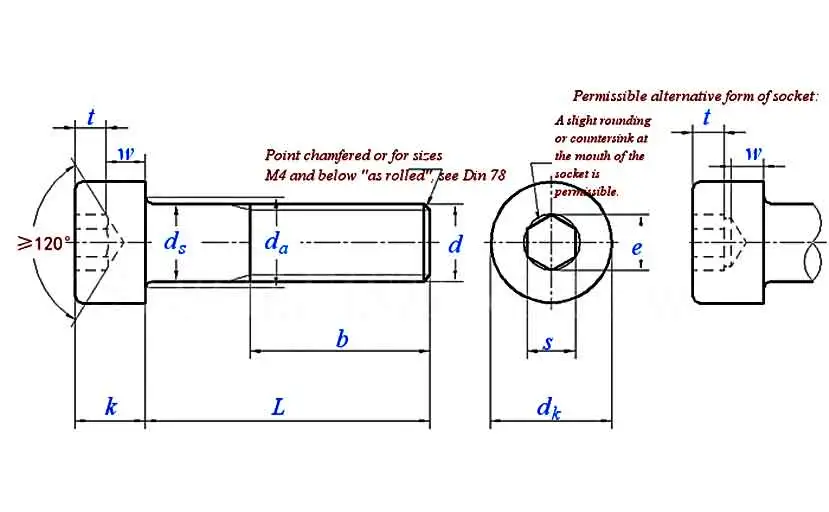

| Name | Allen Bolts | Materials | Carbon Steel/Stainless Steel |
| Standards | DIN ISO ANC BSW JIS etc. | Strength level | 4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80 |
| Size | M3-M50 | Surface finish | ZPHDGBLACKDacromet etc. |
| Length | 15-500 | Samples | Available |
| 0 | M1.4 | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | ||||
| d | |||||||||||||||||||
| P | pitch | coarse teeth | 0.3 | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | ||
| fine teeth 1 | - | - | - | - | - | - | - | - | 1 | 1.25 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | ||||
| fine teeth 2 | - | - | - | - | - | - | - | - | - | 1 | 1.5 | - | - | 2 | 2 | ||||
| dk | round head | maximum value | 2.6 | 3 | 3.8 | 4.5 | 5.5 | 7 | 8.5 | 10 | 13 | 16 | 18 | twenty one | twenty four | 27 | 30 | ||
| knurled head | maximum value | 2.74 | 3.14 | 3.98 | 4.68 | 5.68 | 7.22 | 8.72 | 10.22 | 13.27 | 16.27 | 18.27 | 21.33 | 24.33 | 27.33 | 30.33 | |||
| minimum | 2.46 | 2.86 | 3.62 | 4.32 | 5.32 | 6.78 | 8.28 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | ||||
| d a | maximum value | 1.8 | 2 | 2.6 | 3.1 | 3.6 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 20.2 | 22.4 | |||
| ds | maximum value | 1.4 | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | |||
| minimum | 1.26 | 1.46 | 1.86 | 2.36 | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 17.73 | 19.67 | ||||
| and | minimum | 1.5 | 1.73 | 1.73 | 2.3 | 2.87 | 3.44 | 4.58 | 5.72 | 6.86 | 9.15 | 11.43 | 13.72 | 16 | 16 | 19.44 | |||
| k | maximum value | 1.4 | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | |||
| minimum | 1.26 | 1.46 | 1.86 | 2.36 | 2.86 | 3.82 | 4.82 | 5.7 | 7.64 | 9.64 | 11.57 | 13.57 | 15.57 | 17.57 | 19.48 | ||||
| s | Nominal | 1.3 | 1.5 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 14 | 17 | |||
| minimum | 1.32 | 1.52 | 1.52 | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 6.02 | 8.025 | 10.025 | 12.032 | 14.032 | 14.032 | 17.05 | ||||
| maximum value | 1.36 | 1.56 | 1.56 | 2.06 | 2.58 | 3.08 | 4.095 | 5.14 | 6.14 | 8.175 | 10.175 | 12.212 | 14.212 | 14.212 | 17.23 | ||||
| t | minimum | 0.6 | 0.7 | 1 | 1.1 | 1.3 | 2 | 2.5 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | |||
| in | minimum | 0.5 | 0.55 | 0.55 | 0.85 | 1.15 | 1.4 | 1.9 | 2.3 | 3 | 4 | 4.8 | 5.8 | 6.8 | 7.8 | 8.6 | |||
| Thousand pieces of steel weight ≈kg | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||
| thread length b | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||
| thread size | (M22) | M24 | (M27) | M30 | (M33) | M36 | M42 | M48 | M56 | M64 | M72 | M80 | M90 | M100 | ||||
| d | ||||||||||||||||||
| P | pitch | coarse teeth | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | 6 | 6 | 6 | 6 | ||
| fine teeth 1 | 1.5 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 | 4 | ||||
| fine teeth 2 | 2 | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||
| dk | round head | maximum value | 33 | 36 | 40 | 45 | 50 | 54 | 63 | 72 | 84 | 96 | 108 | 120 | 135 | 150 | ||
| knurled head | maximum value | 33.39 | 36.39 | 40.39 | 45.39 | 50.39 | 54.46 | 63.46 | 72.46 | 84.54 | 96.54 | 108.54 | 120.54 | 135.63 | 150.63 | |||
| minimum | 32.61 | 35.61 | 39.61 | 44.61 | 49.61 | 53.54 | 62.54 | 71.54 | 83.46 | 95.46 | 107.46 | 119.46 | 134.37 | 149.37 | ||||
| d a | maximum value | 24.4 | 26.4 | 30.4 | 33.4 | 36.4 | 39.4 | 45.5 | 52.6 | 63 | 71 | 79 | 87 | 97 | 107 | |||
| ds | maximum value | twenty two | twenty four | 27 | 30 | 33 | 36 | 42 | 48 | 56 | 64 | 72 | 80 | 90 | 100 | |||
| minimum | 21.67 | 23.67 | 26.67 | 29.67 | 32.61 | 35.61 | 41.61 | 47.61 | 55.54 | 63.54 | 71.54 | 79.54 | 89.46 | 99.46 | ||||
| and | minimum | 19.44 | 21.73 | 21.73 | 25.15 | 27.43 | 30.85 | 36.57 | 41.13 | 46.83 | 52.53 | 62.81 | 74.21 | 85.61 | 97.04 | |||
| k | maximum value | twenty two | twenty four | 27 | 30 | 33 | 36 | 42 | 48 | 56 | 64 | 72 | 80 | 90 | 100 | |||
| minimum | 21.48 | 23.48 | 26.48 | 29.48 | 32.38 | 35.38 | 41.38 | 47.38 | 55.26 | 63.26 | 71.26 | 79.26 | 89.13 | 99.13 | ||||
| s | Nominal | 17 | 19 | 19 | twenty two | twenty four | 27 | 32 | 36 | 41 | 46 | 55 | 65 | 75 | 85 | |||
| minimum | 17.05 | 19.065 | 19.065 | 22.065 | 24.065 | 27.065 | 32.08 | 36.08 | 41.08 | 46.08 | 55.1 | 65.1 | 75.1 | 85.12 | ||||
| maximum value | 17.23 | 19.275 | 19.275 | 22.275 | 24.275 | 27.275 | 32.33 | 36.33 | 41.33 | 46.33 | 55.4 | 65.4 | 75.4 | 85.47 | ||||
| t | minimum | 11 | 12 | 13.5 | 15.5 | 18 | 19 | twenty four | 28 | 34 | 38 | 43 | 48 | 54 | 60 | |||
| in | minimum | 9.4 | 10.4 | 11.9 | 13.1 | 13.5 | 15.3 | 16.3 | 17.5 | 19 | twenty two | 25 | 27 | 32 | 34 | |||
| Thousand pieces of steel weight ≈kg | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||
| thread length b | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||
Befast’s high-strength hexagon socket allen screws deliver top-tier performance in applications that demand precision and durability. With rigorous testing and quality control throughout the production process, our screws offer exceptional tensile strength and wear resistance.
Available in multiple grades, we can fulfill high-volume orders with fast turnaround times, ensuring your project is completed on schedule and within budget.
