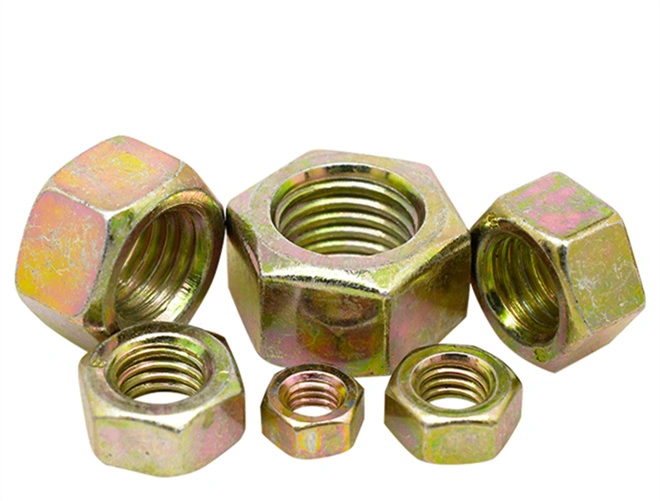

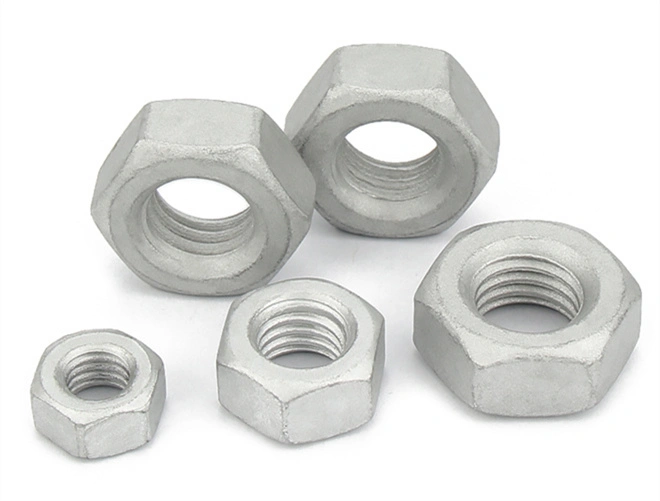

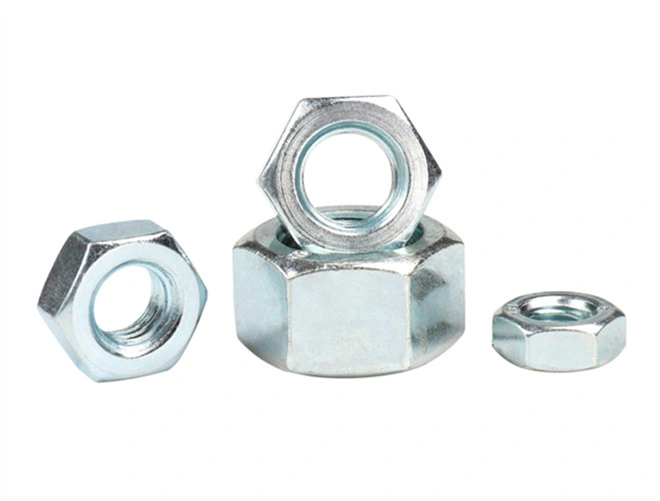

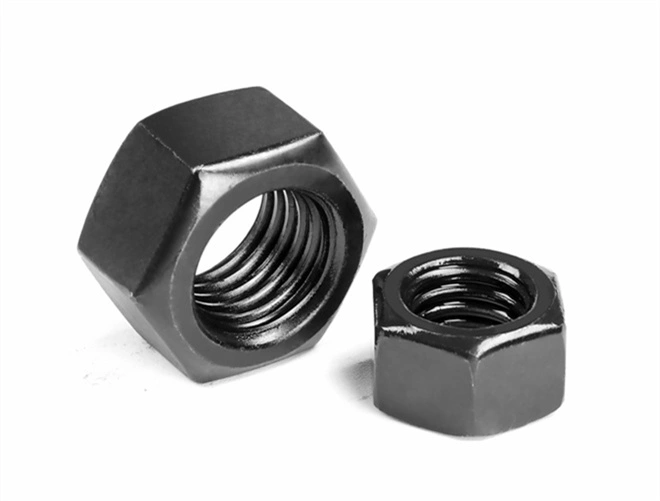

With a tensile strength up to 400 MPa, they are well-suited for general construction and assembly needs, ensuring secure fastening.
These nuts are manufactured to precise specifications, providing consistent quality and performance in everyday use.
| Name | Hex Nuts | Materials | Carbon Steel/Stainless Steel |
| Standards | DIN ISO ANC BSW JIS etc. | Strength level | 4 5 8 10 12 A2-70 A4-70 A4-80 etc. |
| Size | M3-M50 | Surface finish | ZPHDGBLACKDacromet etc. |
| Length | 1-32 | Samples | Available |
| Thread specification | M1 | M1.2 | M1.4 | M1.6 | M1.7 | M2 | M2.3 | M2.5 | M2.6 | M3 | M3.5 | M4 | M5 | M6 | M7 | M8 | |
| d | |||||||||||||||||
| P | coarse teeth | 0.25 | 0.25 | 0.3 | 0.35 | 0.35 | 0.4 | 0.45 | 0.45 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1 | 1.25 |
| fine teeth | / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | 1 | |
| very fine teeth | / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | |
| k | max = nominal | 0.8 | 1 | 1.2 | 1.3 | 1.4 | 1.6 | 1.8 | 2 | 2 | 2.4 | 2.8 | 3.2 | 4 | 5 | 5.5 | 6.5 |
| minimum | 0.55 | 0.75 | 0.95 | 1.05 | 1.15 | 1.35 | 1.55 | 1.75 | 1.75 | 2.15 | 2.55 | 2.9 | 3.7 | 4.7 | 5.2 | 6.14 | |
| s | max = nominal | 2.5 | 3 | 3 | 3.2 | 3.5 | 4 | 4.5 | 5 | 5 | 5.5 | 6 | 7 | 8 | 10 | 11 | 13 |
| minimum | 2.4 | 2.9 | 2.9 | 3.08 | 3.38 | 3.88 | 4.32 | 4.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 10.73 | 12.73 | |
| e ① | minimum | 2.71 | 3.28 | 3.28 | 3.48 | 3.82 | 4.38 | 4.88 | 5.45 | 5.45 | 6.01 | 6.58 | 7.66 | 8.79 | 11.05 | 12.12 | 14.38 |
| * | / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | |
| Thousand pieces (steel)≈kg | 0.03 | 0.054 | 0.063 | 0.076 | 0.1 | 0.142 | 0.2 | 0.28 | 0.72 | 0.384 | 0.514 | 0.81 | 1.23 | 2.5 | 3.12 | 5.2 | |
| Thread specification | M10 | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | |
| d | |||||||||||||||||
| P | coarse teeth | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 |
| fine teeth | 1.25 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | |
| very fine teeth | 1 | 1.5 | / | / | 2 | 2 | 2 | / | / | / | / | / | / | / | / | / | |
| k | max = nominal | 8 | 10 | 11 | 13 | 15 | 16 | 18 | 19 | twenty two | twenty four | 26 | 29 | 31 | 34 | 36 | 38 |
| minimum | 7.64 | 9.64 | 10.3 | 12.3 | 14.3 | 14.9 | 16.9 | 17.7 | 20.7 | 22.7 | 24.7 | 27.4 | 29.4 | 32.4 | 34.4 | 36.4 | |
| s | max = nominal | 17 | 19 | twenty two | twenty four | 27 | 30 | 32 | 36 | 41 | 46 | 50 | 55 | 60 | 65 | 70 | 75 |
| minimum | 16.73 | 18.67 | 21.67 | 23.67 | 26.16 | 29.16 | 31 | 35 | 40 | 45 | 49 | 53.8 | 58.8 | 63.8 | 68.1 | 73.1 | |
| e ① | minimum | 18.9 | 21.1 | 24.49 | 26.75 | 29.56 | 32.95 | 35.03 | 39.55 | 45.2 | 50.85 | 55.37 | 60.79 | 66.44 | 72.09 | 76.95 | 82.6 |
| * | / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | / | |
| Thousand pieces (steel)≈kg | 11.6 | 17.3 | 25 | 33.3 | 49.4 | 64.4 | 79 | 110 | 165 | 223 | 288 | 393 | 502 | 652 | 800 | 977 | |
| Thread specification | M52 | M56 | M60 | M64 | M68 | M72 | M76 | M80 | M85 | M90 | M100 | M110 | M125 | M140 | M160 | |
| d | ||||||||||||||||
| P | coarse teeth | 5 | 5.5 | 5.5 | 6 | 6 | / | / | / | / | / | / | / | / | / | / |
| fine teeth | 3 | 4 | 4 | 4 | 4 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | 6 | |
| very fine teeth | / | / | / | / | / | 4 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | / | / | |
| k | max = nominal | 42 | 45 | 48 | 51 | 54 | 58 | 61 | 64 | 68 | 72 | 80 | 88 | 100 | 112 | 128 |
| minimum | 40.4 | 43.4 | 46.4 | 49.1 | 52.1 | 56.1 | 59.1 | 62.1 | 66.1 | 70.1 | 78.1 | 85.8 | 97.8 | 109.8 | 125.5 | |
| s | max = nominal | 80 | 85 | 90 | 95 | 100 | 105 | 110 | 115 | 120 | 130 | 145 | 155 | 180 | 200 | 230 |
| minimum | 78.1 | 82.8 | 87.8 | 92.8 | 97.8 | 102.8 | 107.8 | 112.8 | 117.8 | 127.5 | 142.5 | 152.5 | 177.5 | 195.4 | 225.4 | |
| e ① | minimum | 88.25 | 93.56 | 99.21 | 104.86 | 110.51 | 116.16 | 121.81 | 127.46 | 133.11 | 144.08 | 161.02 | 172.32 | 200.57 | 220.8 | 254.7 |
| * | / | / | / | / | / | / | / | / | / | / | / | 170 | 196 | 216 | 248 | |
| Thousand pieces (steel)≈kg | 1220 | 1420 | 1690 | 1980 | 2300 | 2670 | 3040 | 3440 | 3930 | 4930 | 6820 | 8200 | 13000 | 17500 | 26500 | |
| ①,e In the case of size M110 or larger, the hexagonal edge can be rounded. | ||||||||||||||||
Our Grade 4 hex nuts provide reliable strength for non-critical applications, with up to 10% more durability than standard grade nuts. Designed for easy assembly, they are an affordable choice for routine installations.
Each nut undergoes quality control to ensure reliable performance, making them suitable for general-purpose use. For cost-effective, dependable fastening, choose Befast’s Grade 4 hex nuts.
