Befast’s threaded rods in Grades 4.8, 8.8, 10.9, and 12.9 offer versatile fastening solutions with reliable load-bearing capacities.
These rods are adaptable to various industrial and structural applications, meeting global standards for strength and durability, ensuring long-term performance.
| Name | Threaded Rods | Materials | Carbon Steel/Stainless Steel |
| Standards | DIN ISO ANC BSW JIS etc. | Strength level | 4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80 |

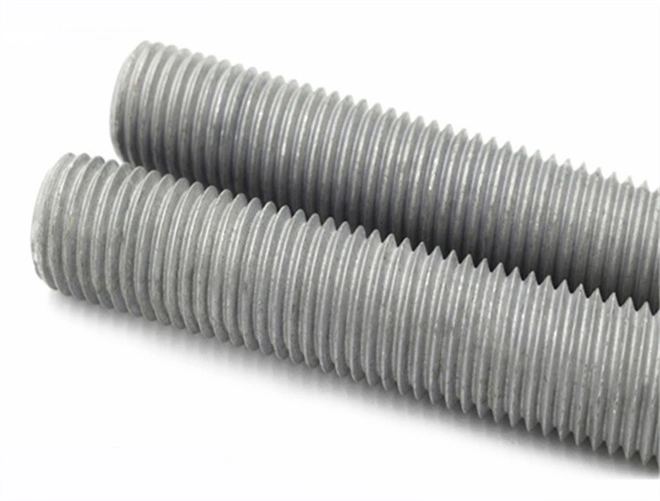

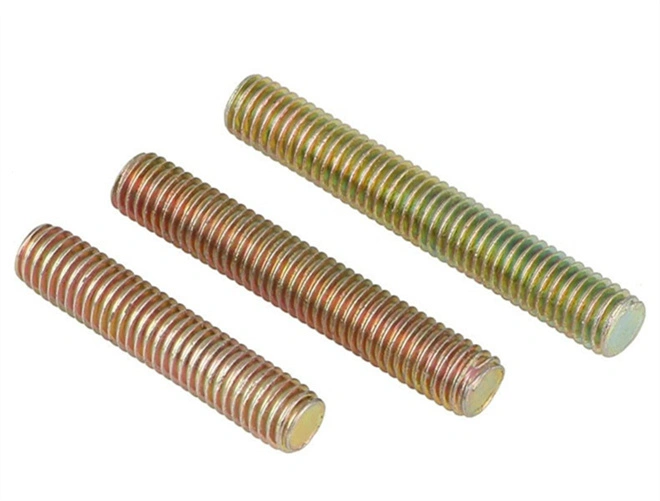

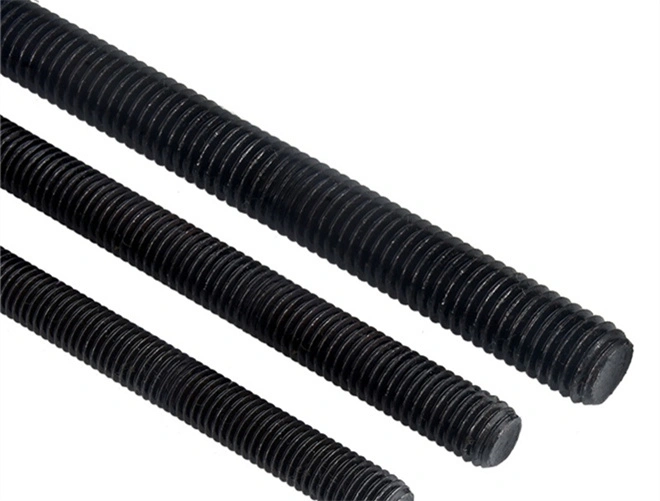

| Size | M2-M52 | Surface finish | ZP\HDG\BLACK\Dacromet etc. |
| Length | 20-3000 | Samples | Available |

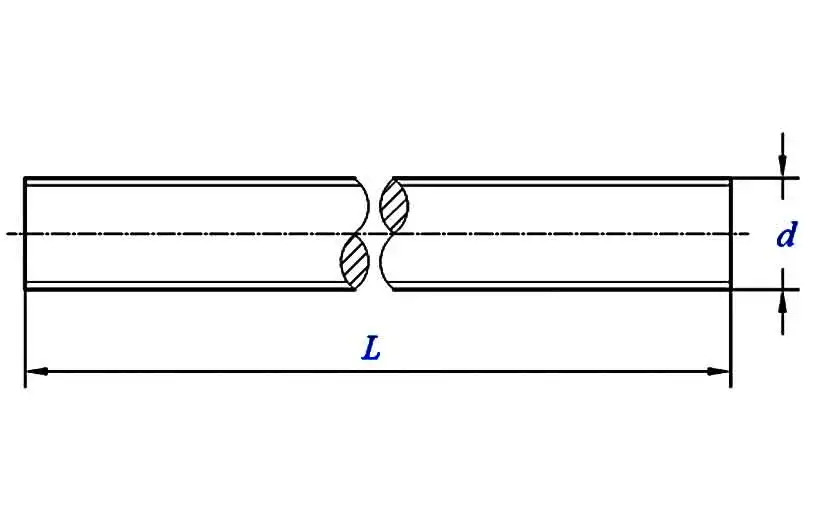

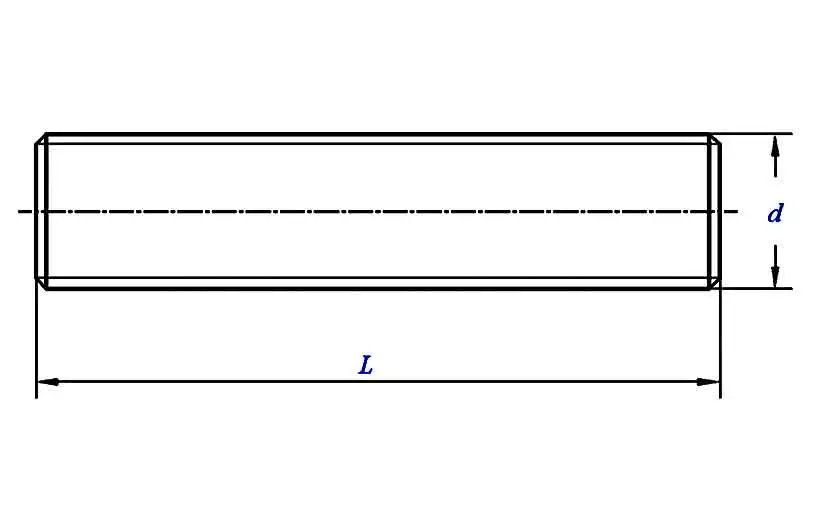

| thread size | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | ||
| d | |||||||||||||||
| P | coarse teeth | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | |
| fine teeth | / | / | / | / | / | / | / | 1 | 1.25 | 1.25 | 1.5 | 1.5 | 1.5 | ||
| fine teeth | / | / | / | / | / | / | / | / | 1 | 1.5 | / | / | / | ||
| L | ±10 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
| thread size | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | M45 | M48 | M52 | ||
| d | ||||||||||||||
| P | coarse teeth | 2.5 | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | |
| fine teeth | 1.5 | 1.5 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | ||
| fine teeth | / | / | / | / | / | / | / | / | / | / | / | / | ||
| L | ±10 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | 1000 | |
| Thousand pieces (steel)≈kg | 2080 | 2540 | 3000 | 3850 | 4750 | 5900 | 6900 | 8200 | 9400 | 11000 | 12400 | 14700 | ||
①,Material:
a) Steel, performance grade: 4.6, 5.6, 5.8. Standard ISO 898-1
Note: If there is no specified model, it should be determined by the manufacturer
b) Stainless steel, performance class: A2, A4. Standard DIN 267-11
c) Non-ferrous metals, property class: CuZn = copper-zinc alloy, CU2 or CU3 at the choice of the manufacturer. Standard DIN 267-18
| Thread specification | M2 | M2.5 | M3 | (M3.5) | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | ||||
| d | |||||||||||||||||||
| P | pitch | coarse teeth | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | ||
| fine teeth 1 | - | - | - | - | - | - | - | 1 | 1.25 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | ||||
| fine teeth 2 | - | - | - | - | - | - | - | - | 1 | 1.5 | - | - | - | - | - | ||||
| Thousand pieces of steel weight ≈kg | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||
| Thread specification | M24 | (M27) | M30 | (M33) | M36 | (M39) | M42 | (M45) | M48 | (M52) | M56 | (M60) | M64 | (M68) | M72 | ||||
| d | |||||||||||||||||||
| P | pitch | coarse teeth | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5 | 5.5 | 5.5 | 6 | 6 | - | ||
| fine teeth 1 | 2 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 6 | ||||
| fine teeth 2 | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||
| Thousand pieces of steel weight ≈kg | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | ||||
Our high-grade threaded rods offer the strength needed for diverse applications. Each grade, from 4.8 to 12.9, provides specific load capacities to suit various industrial requirements.
Quality-tested to international standards, these rods ensure secure, reliable assemblies, making them essential for heavy-duty projects.
