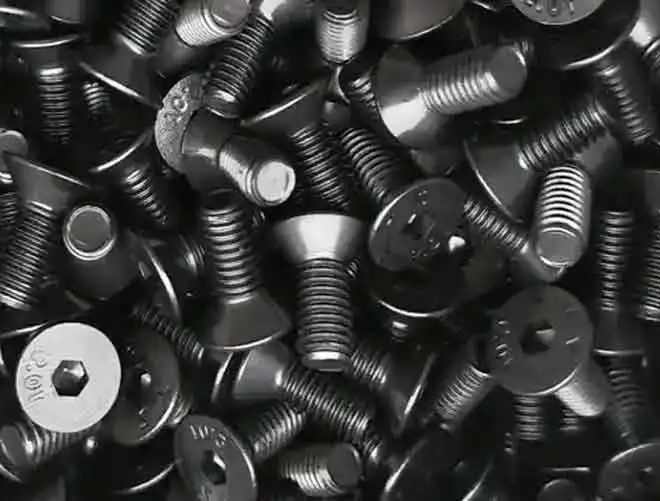

Grade 4.8 8.8 10.9 12.9 high strength hex socket countersunk head cap screws are commonly used in machinery, automotive, and structural applications where space-saving and strong fastening are necessary.
Made from high-quality carbon steel, these screws are heat-treated for increased strength and wear resistance. The countersunk design allows for a flush finish, reducing the risk of snagging and enhancing the aesthetic of your assembly.
| Name | CSK Head hex socket bolts | Materials | Carbon Steel/Stainless Steel |
| Standards | DIN ISO ANC BSW JIS etc. | Strength level | 4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80 |
| Size | M3-M50 | Surface finish | ZPHDGBLACKDacromet etc. |
| Length | 15-500 | Samples | Available |

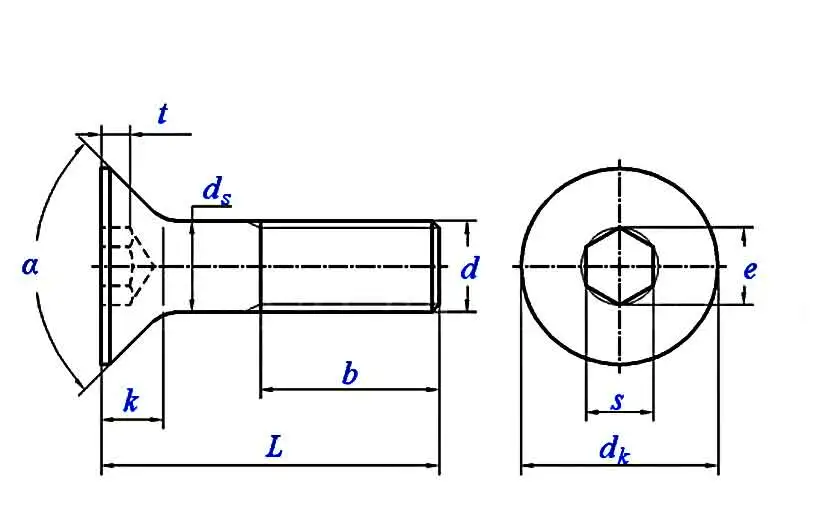

| Thread specification | M3 | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | (M22) | M24 | |
| d | ||||||||||||||
| P | pitch | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 |
| a | toll.(+2) | 90° | 90° | 90° | 90° | 90° | 90° | 90° | 90° | 90° | 90° | 90° | 60° | 60° |
| b | L≤125 | 12 | 14 | 16 | 18 | twenty two | 26 | 30 | 34 | 38 | 42 | 46 | 50 | 54 |
| 125＜L ≤ 200 | / | / | / | twenty four | 28 | 32 | 36 | 40 | 44 | 48 | 52 | 56 | 60 | |
| L＞200 | / | / | / | / | / | 45 | 49 | 53 | 57 | 61 | 65 | 69 | 73 | |
| dk | max = nominal | 6 | 8 | 10 | 12 | 16 | 20 | twenty four | 27 | 30 | 33 | 36 | 36 | 39 |
| minimum | 5.7 | 7.64 | 9.64 | 11.57 | 15.57 | 19.48 | 23.48 | 26.48 | 29.48 | 32.38 | 35.38 | 35.38 | 38.38 | |
| ds | max = nominal | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | twenty two | twenty four |
| minimum | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 17.73 | 19.67 | 21.67 | 23.67 | |
| and | minimum | 2.3 | 2.87 | 3.44 | 4.58 | 5.72 | 6.86 | 9.15 | 11.43 | 11.43 | 13.72 | 13.72 | 16 | 16 |
| k | maximum value | 1.7 | 2.3 | 2.8 | 3.3 | 4.4 | 5.5 | 6.5 | 7 | 7.5 | 8 | 8.5 | 13.1 | 14 |
| s | Nominal | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 10 | 12 | 12 | 14 | 14 |
| minimum | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 6.02 | 8.025 | 10.025 | 10.025 | 12.032 | 12.032 | 14.032 | 14.032 | |
| maximum value | 2.1 | 2.6 | 3.1 | 4.12 | 5.14 | 6.14 | 8.175 | 10.175 | 10.175 | 12.212 | 12.212 | 14.212 | 14.212 | |
| t | max = nominal | 1.2 | 1.8 | 2.3 | 2.5 | 3.5 | 4.4 | 4.6 | 4.8 | 5.3 | 5.5 | 5.9 | 8.8 | 10.3 |
| minimum | 0.95 | 1.55 | 2.05 | 2.25 | 3.2 | 4.1 | 4.3 | 4.5 | 5 | 5.2 | 5.6 | 8.44 | 9.87 | |
| Thousand pieces of steel weight ≈kg | - | - | - | - | - | - | - | - | - | - | - | - | - | |
| thread length b | - | - | - | - | - | - | - | - | - | - | - | - | - | |

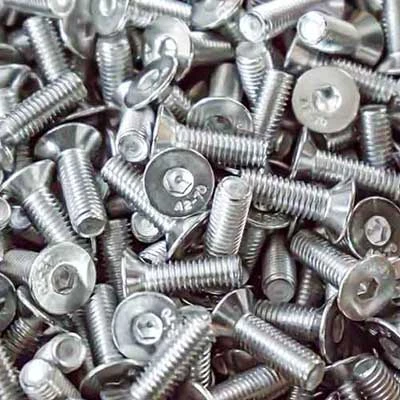

Befast’s high-strength hex socket countersunk head cap screws are ideal for applications where a strong, flush fastening is needed. Available in grades 4.8, 8.8, 10.9, and 12.9, these screws provide exceptional tensile strength and resistance to corrosion.
Their hex socket design ensures secure tightening, while the countersunk head offers a smooth and aesthetically pleasing finish. These screws are versatile and reliable, making them perfect for industries requiring both strength and precision. With Befast’s high-strength screws, you can achieve a secure and durable fastening solution.
