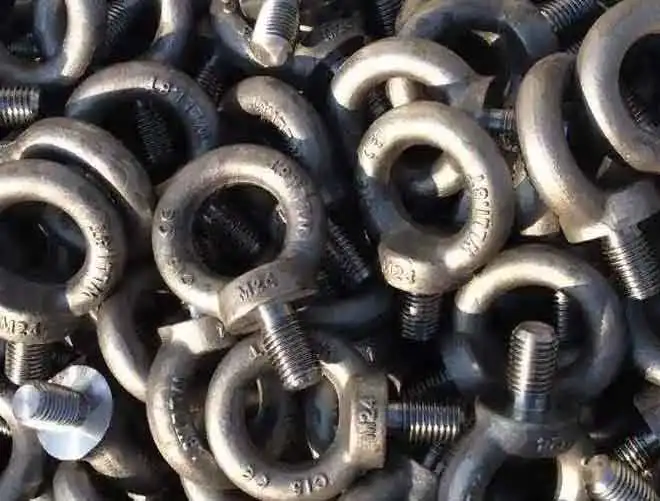

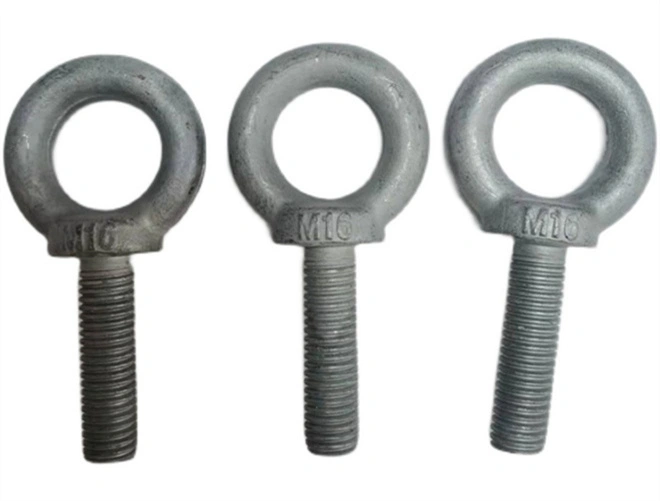

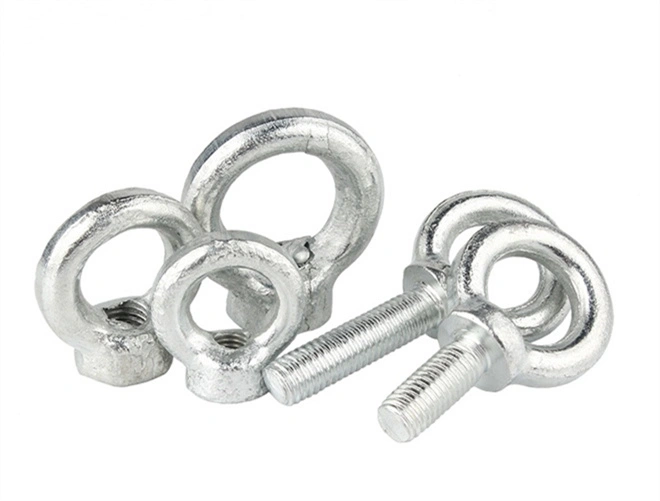

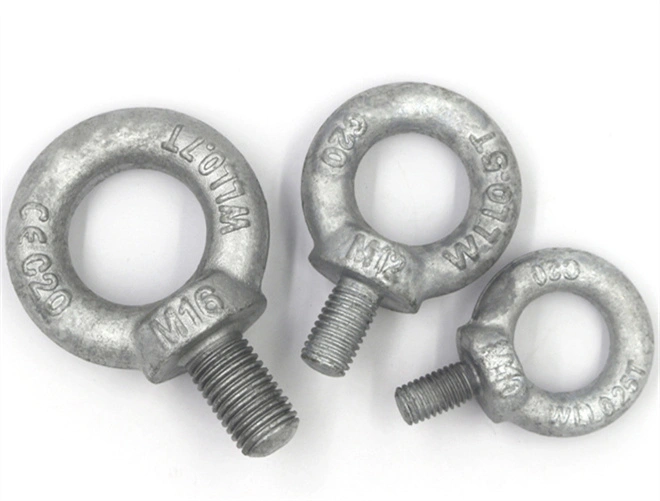

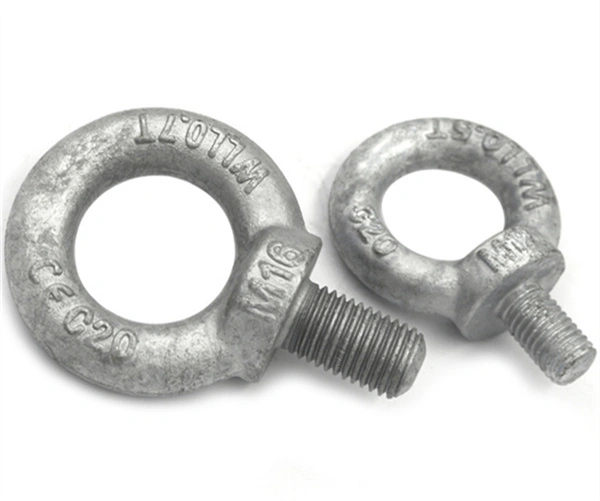

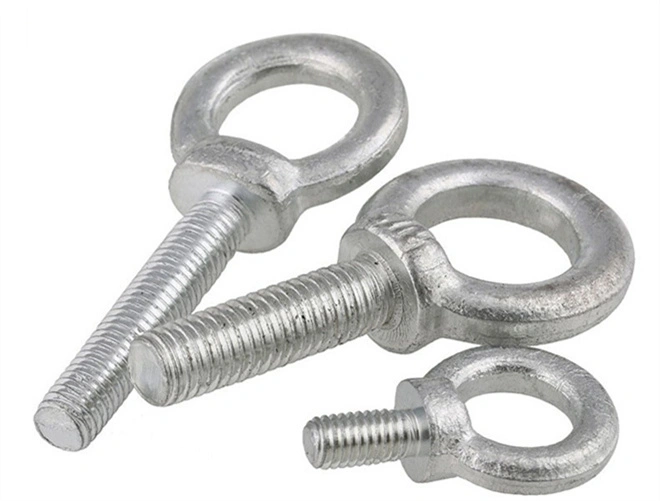

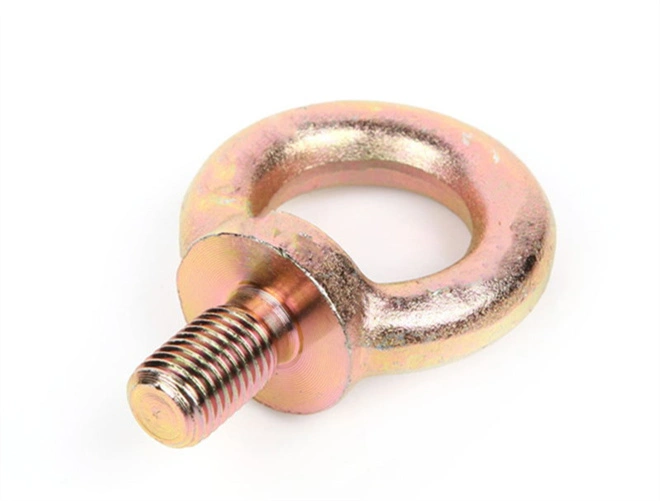

Designed for safe lifting and rigging, galvanized lifting eye bolts can withstand loads of up to 1.2 times the capacity of standard eye bolts, making them ideal for industrial applications.
Their galvanized coating provides added rust protection, ensuring reliable use in outdoor or corrosive environments.
| Name | Eye bolts | Materials | Carbon Steel/Stainless Steel |
| Standards | DIN ISO ANC BSW JIS etc. | Strength level | 4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80 |
| Size | M3-M50 | Surface finish | ZP\HDG\BLACK\Dacromet etc. |
| Length | 15-500 | Samples | Available |

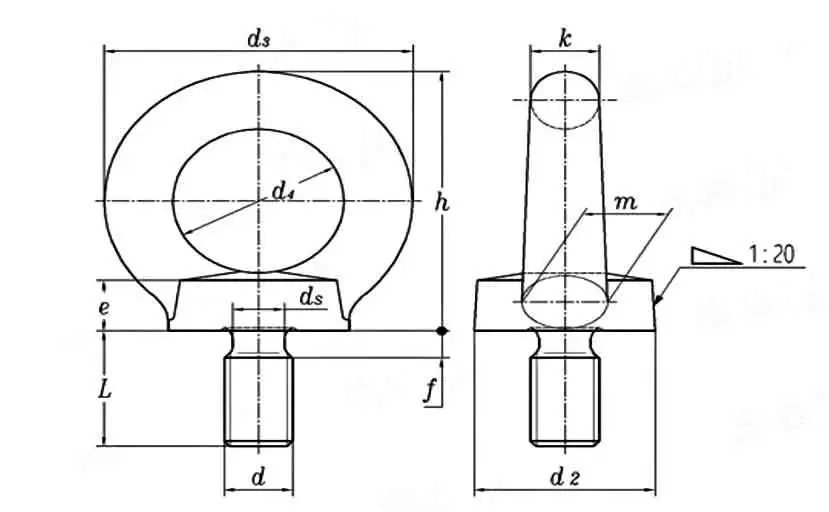

| Thread specification | M8 | M10 | M12 | M16 | M20 | M24 | M30 | M36 | M42 | M48 | M56 | M64 | M72×6 | M80×6 | M100×6 | ||
| d | |||||||||||||||||
| d 2 | Nominal | 20 | 25 | 30 | 35 | 40 | 50 | 65 | 75 | 85 | 100 | 110 | 120 | 150 | 170 | 190 | |
| minimum | 19.5 | 24.5 | 29.5 | 34.5 | 39.3 | 49.3 | 64.3 | 74.3 | 84.2 | 99.1 | 108.9 | 118.8 | 148.7 | 168.5 | 188.5 | ||
| maximum value | 21.1 | 26.1 | 31.1 | 36.2 | 41.3 | 51.3 | 66.3 | 76.5 | 86.7 | 101.9 | 112.1 | 122.4 | 152.7 | 173 | 193 | ||
| d 3 | Nominal | 36 | 45 | 54 | 63 | 72 | 90 | 108 | 126 | 144 | 166 | 184 | 206 | 260 | 296 | 330 | |
| minimum | 35.4 | 44.4 | 53.4 | 62.4 | 71.3 | 89.3 | 107.3 | 125.2 | 143.1 | 164.8 | 182.8 | 204.7 | 258.3 | 294.3 | 328.3 | ||
| maximum value | 37.2 | 46.2 | 55.2 | 64.2 | 73.3 | 91.3 | 109.5 | 127.7 | 145.9 | 168.4 | 186.4 | 208.7 | 263.3 | 299.3 | 333.3 | ||
| d 4 | Nominal | 20 | 25 | 30 | 35 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | 140 | 160 | 180 | |
| minimum | 18.9 | 23.9 | 28.9 | 33.8 | 38.7 | 48.7 | 58.7 | 68.5 | 78.3 | 88.1 | 98.1 | 107.6 | 137.3 | 157.3 | 177 | ||
| maximum value | 20.5 | 25.5 | 30.5 | 35.6 | 40.7 | 50.7 | 60.7 | 70.7 | 80.8 | 90.9 | 100.9 | 111.2 | 141.3 | 161.3 | 181.5 | ||
| and | Nominal | 6 | 8 | 10 | 12 | 14 | 18 | twenty two | 26 | 30 | 35 | 38 | 42 | 50 | 55 | 60 | |
| minimum | 5.5 | 7.5 | 9.5 | 11.5 | 13.4 | 17.4 | 21.4 | 25.3 | 29.3 | 34.1 | 37.1 | 40.9 | 48.8 | 53.8 | 58.8 | ||
| maximum value | 7.1 | 9.1 | 11.1 | 13.1 | 15.2 | 19.2 | 23.2 | 27.3 | 31.5 | 36.9 | 39.9 | 44.1 | 52.4 | 57.4 | 62.4 | ||
| f | maximum value | 2.5 | 3 | 3.5 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 12 | 12 | 12 | |
| ds | max = nominal | 6 | 7.7 | 9.4 | 13 | 16.4 | 19.6 | 25 | 30.3 | 35.6 | 41 | 48.3 | 55.7 | 63.7 | 71.7 | 91.7 | |
| minimum | 5.82 | 7.48 | 9.18 | 12.73 | 16.13 | 19.27 | 24.67 | 29.91 | 35.21 | 40.61 | 47.91 | 55.24 | 63.24 | 71.24 | 91.16 | ||
| h | Nominal | 36 | 45 | 53 | 62 | 71 | 90 | 109 | 128 | 147 | 168 | 187 | 208 | 260 | 298 | 330 | |
| minimum | 35.4 | 44.4 | 52.4 | 61.4 | 70.3 | 89.3 | 108.3 | 127.2 | 146.1 | 166.8 | 185.8 | 206.7 | 258.3 | 296.3 | 328.3 | ||
| maximum value | 37.2 | 46.2 | 54.2 | 63.2 | 72.3 | 91.3 | 110.5 | 129.7 | 148.9 | 168.4 | 189.4 | 210.7 | 263.3 | 301.3 | 333.3 | ||
| k | Nominal | 8 | 10 | 12 | 14 | 16 | 20 | twenty four | 28 | 32 | 38 | 42 | 48 | 60 | 68 | 75 | |
| minimum | 7.5 | 9.5 | 11.5 | 13.5 | 15.4 | 19.4 | 23.4 | 27.3 | 31.3 | 37.1 | 41.1 | 46.9 | 58.8 | 66.8 | 73.8 | ||
| maximum value | 9.1 | 11.1 | 13.1 | 15.1 | 17.2 | 21.2 | 25.2 | 29.3 | 33.5 | 39.9 | 43.9 | 50.1 | 62.4 | 70.4 | 77.4 | ||
| L | Nominal | 13 | 17 | 20.5 | 27 | 30 | 36 | 45 | 54 | 63 | 68 | 78 | 90 | 100 | 112 | 130 | |
| minimum | 12.71 | 16.71 | 20.15 | 26.65 | 29.58 | 35.5 | 44.5 | 53.5 | 62.5 | 67.5 | 77.4 | 89.4 | 99.4 | 111.3 | 129.2 | ||
| maximum value | 13.29 | 17.29 | 20.85 | 27.35 | 30.42 | 36.5 | 45.5 | 54.5 | 63.5 | 68.5 | 78.6 | 90.6 | 100.6 | 112.7 | 130.7 | ||
| m | Nominal | 10 | 12 | 14 | 16 | 19 | twenty four | 28 | 32 | 38 | 46 | 50 | 58 | 72 | 80 | 88 | |
| minimum | 9.5 | 11.5 | 13.5 | 15.5 | 18.4 | 23.4 | 27.4 | 31.3 | 37.2 | 45.1 | 49.1 | 56.9 | 70.8 | 78.8 | 86.8 | ||
| maximum value | 11.1 | 13.1 | 15.1 | 17.1 | 20.2 | 25.2 | 29.2 | 33.3 | 39.5 | 47.9 | 51.9 | 60.1 | 74.4 | 82.4 | 90.4 | ||
| Single weight (steel)≈kg | 0.06 | 0.11 | 0.18 | 0.28 | 0.45 | 0.74 | 1.66 | 2.65 | 4.03 | 6.38 | 8.8 | 12.4 | 23.3 | 34.2 | 49.1 | ||
Our galvanized lifting eye bolts offer a 25% increase in rust resistance over untreated steel, making them perfect for outdoor, construction, or marine applications. Built for heavy lifting, each bolt is tested to meet rigorous industry standards, ensuring safe load-bearing capacity.
These eye bolts are easy to install and designed for maximum stability, offering dependable support for lifting and rigging tasks. With Befast, you get the quality assurance needed for high-stakes projects.
