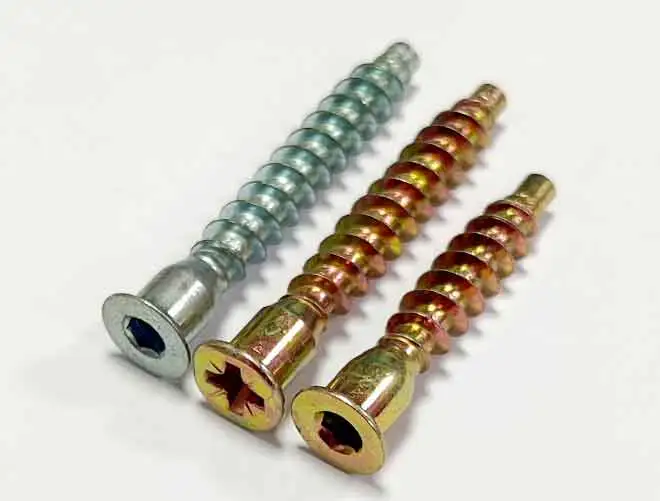

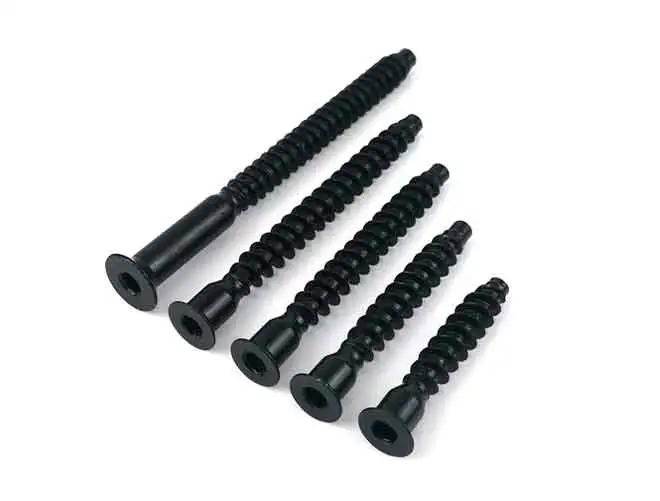

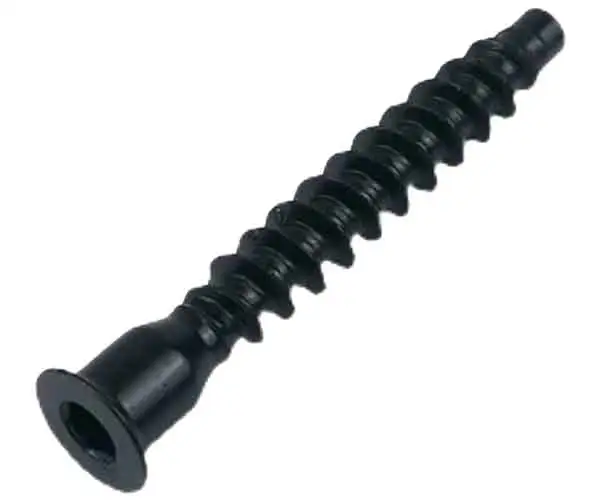

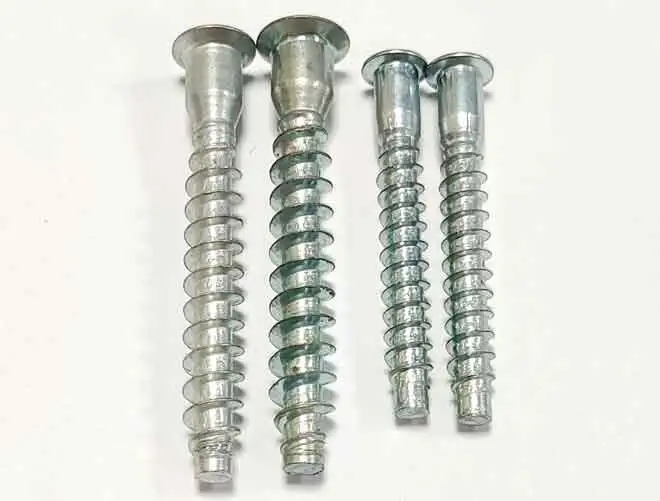

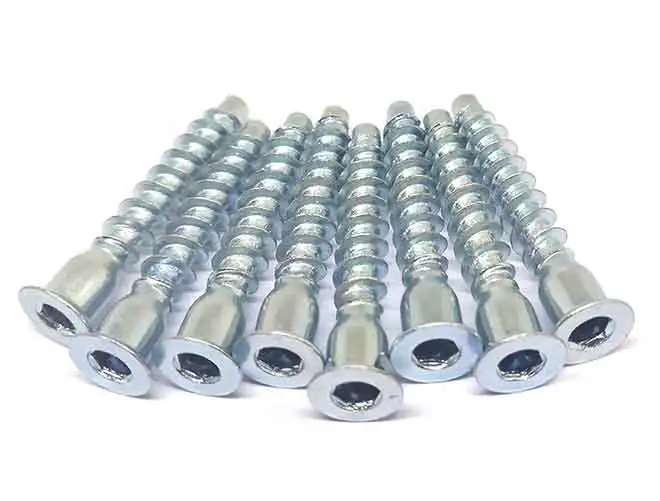

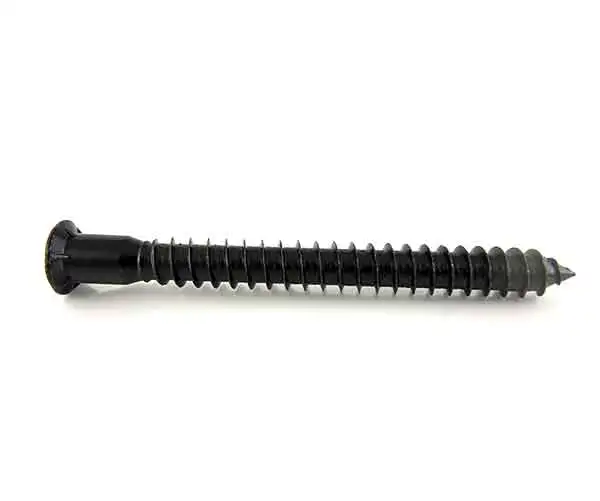

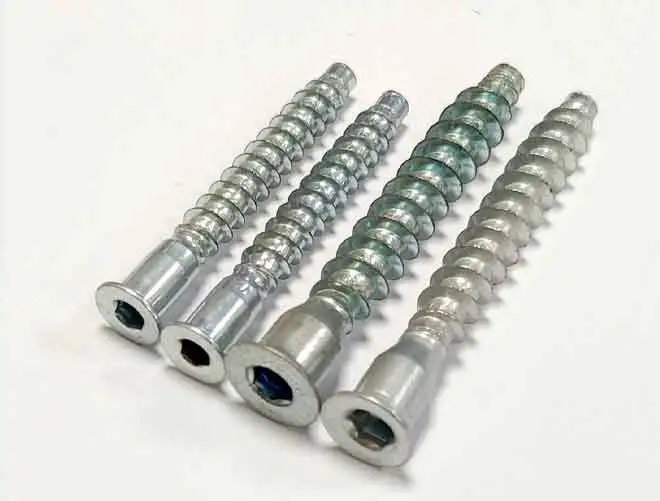

Confirmat screws are specialized fasteners used primarily in furniture assembly. They have a wide, flat head and coarse threads, making them ideal for securing particleboard, MDF, and other composite materials.
These screws provide a strong, stable connection and are easy to install, even in dense materials. Befast confirmat screws are available in various lengths and finishes to suit different furniture assembly needs.

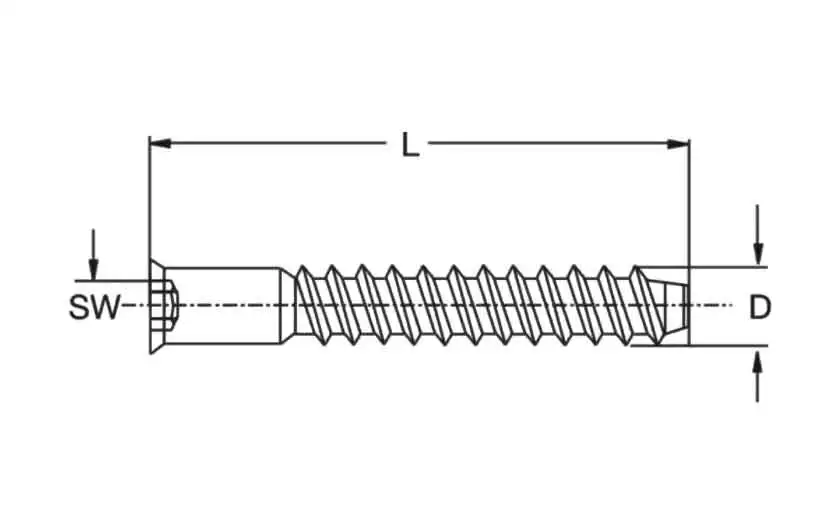

| Thread Diameter (D) | SW | L | Pilot Hole |
| (mm) | (mm) | (mm) | |
| 5mm | 3 | 30 | 4 |
| 5mm | 3 | 38 | 4 |
| 5mm | 3 | 40 | 4 |
| 5mm | 3 | 50 | 4 |
| 5mm | 3 | 60 | 4 |
| 6.3mm | 4 | 50 | 5 |
| 7mm | 4 | 30 | 5 |
| 7mm | 4 | 35 | 5 |
| 7mm | 4 | 38 | 5 |
| 7mm | 4 | 40 | 5 |
| 7mm | 4 | 45 | 5 |
| 7mm | 4 | 50 | 5 |
| 7mm | 4 | 60 | 5 |
| 7mm | 4 | 70 | 5 |
| 7mm | 4 | 80 | 5 |
| 7mm | 4 | 85 | 5 |
| 7mm | 4 | 100 | 5 |
| Thread Diameter (D) | SW | L | Pilot Hole |
| (mm) | (mm) | (mm) | |
| 5mm | 3 | 30 | 4 |
| 5mm | 3 | 38 | 4 |
| 5mm | 3 | 40 | 4 |
| 5mm | 3 | 50 | 4 |
| 5mm | 3 | 60 | 4 |
| 6.3mm | 4 | 50 | 5 |
| 7mm | 4 | 30 | 5 |
| 7mm | 4 | 35 | 5 |
| 7mm | 4 | 38 | 5 |
| 7mm | 4 | 40 | 5 |
| 7mm | 4 | 45 | 5 |
| 7mm | 4 | 50 | 5 |
| 7mm | 4 | 60 | 5 |
| 7mm | 4 | 70 | 5 |
| 7mm | 4 | 80 | 5 |
| 7mm | 4 | 85 | 5 |
| 7mm | 4 | 100 | 5 |
Confirmat screws offer several advantages, including easy installation and a strong connection in composite materials like MDF and particleboard. Their wide threads grip the material securely, preventing it from splitting or cracking.
These screws also provide a clean, flush finish, making them ideal for furniture assembly where aesthetics are important. Befast confirmat screws are designed to deliver reliable performance and a professional finish in every project.
