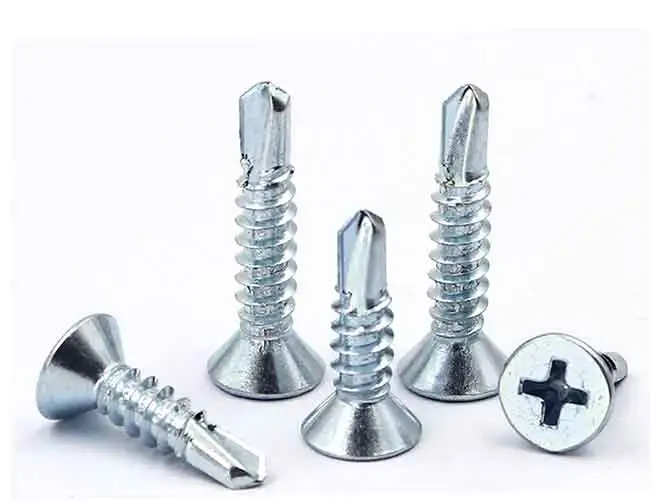

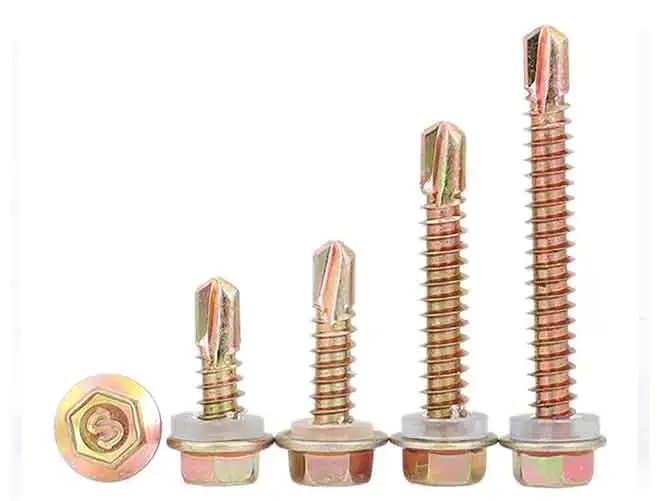

Carbon steel self-drilling screws are engineered for efficiency, featuring a drill bit tip that cuts its own pilot hole, reducing installation time. These screws are perfect for fastening metal to metal, providing a strong and secure connection with minimal effort.
Their durable carbon steel construction ensures they can withstand high stress and demanding conditions, making them ideal for use in structural applications. Precision threading ensures a tight fit, preventing loosening and enhancing the longevity of the joint.
| Name | Self drilling Screws | Materials | Carbon Steel/Stainless Steel |
| Standards | DIN ISO ANC BSW JIS etc. | Strength level | 8.8 etc. |
| Size | M1.5-M6 | Surface finish | ZP\BLACK etc. |
| Length | 10-100 | Samples | Available |

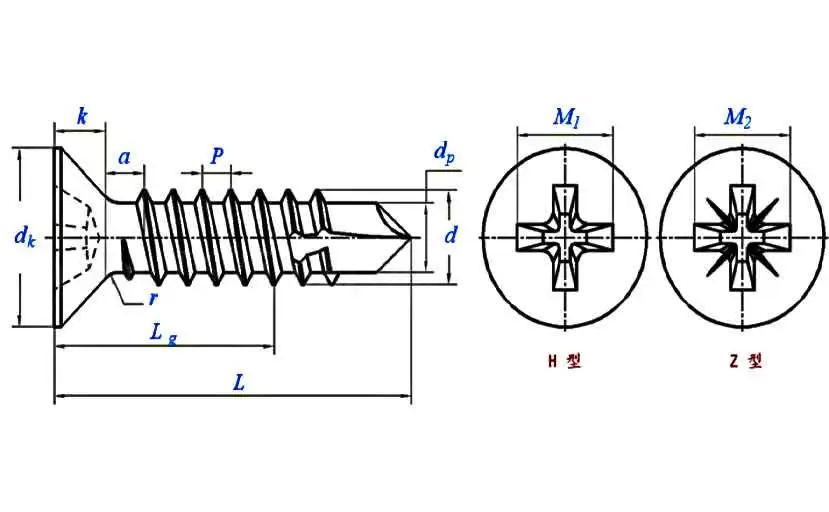

| Thread specification | ST2.9 | ST3.5 | ST4.2 | ST4.8 | ST5.5 | ST6.3 | ||
| P | pitch | 1.1 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 | |
| a | maximum value | 1.1 | 1.3 | 1.4 | 1.6 | 1.8 | 1.8 | |
| dk | maximum value | 5.5 | 7.3 | 8.4 | 9.3 | 10.3 | 11.3 | |
| minimum | 5.2 | 6.9 | 8 | 8.9 | 9.9 | 10.9 | ||
| k | maximum value | 1.7 | 2.35 | 2.6 | 2.8 | 3 | 3.15 | |
| r | maximum value | 1.2 | 1.4 | 1.6 | 2 | 2.2 | 2.4 | |
| slot number | 1 | 2 | 2 | 2 | 3 | 3 | ||
| M1 _ | 3.2 | 4.4 | 4.6 | 5.2 | 6.6 | 6.8 | ||
| M 2 | 3.2 | 4.3 | 4.6 | 5.1 | 6.5 | 6.8 | ||
| dp | 2.3 | 2.8 | 3.6 | 4.1 | 4.8 | 5.8 | ||
| Drilling range (plate thickness) | 0.7~1.9 | 0.7~2.25 | 1.75~3 | 1.75~4.4 | 1.75~5.25 | 2~6 | ||
| Lg (minimum) | - | - | - | - | - | - | ||
①,Material: Manufactured from case-hardened steel as specified in DIN 17210 or quenched and tempered steel as specified in DIN EN 10083-1 and DIN EN 10083-2 (at the discretion of the manufacturer), equivalent grades are permitted.

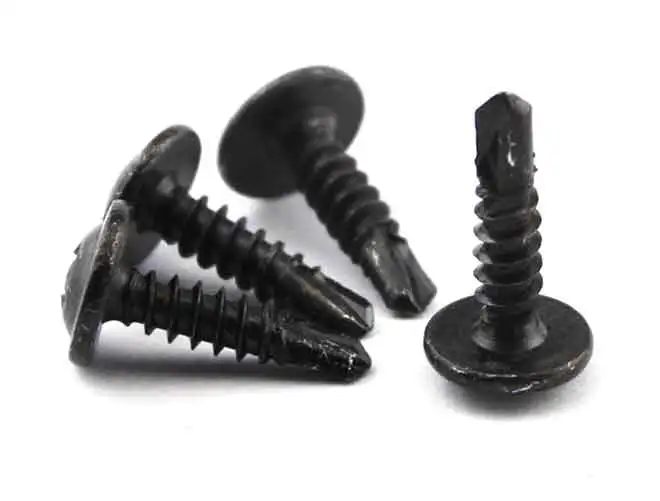

Carbon steel self-drilling screws combine strength and efficiency, featuring a built-in drill bit tip that eliminates the need for pre-drilling. This design speeds up the installation process, making these screws ideal for high-volume projects that require quick, reliable fastening in metal.
Their carbon steel construction ensures durability and the ability to withstand high stress, making them suitable for heavy-duty applications. These screws offer consistent performance, ensuring secure and long-lasting connections in demanding industrial environments.
