Aluminum domed head blind rivets are lightweight yet incredibly strong, offering excellent resistance to corrosion in various environments. These rivets are perfect for applications where weight is a concern, such as in aerospace, automotive, and lightweight construction projects.
The aluminum construction ensures that these rivets are easy to handle and install while maintaining a durable, secure connection. Their domed head provides a neat, finished appearance, making them ideal for both functional and aesthetic applications.

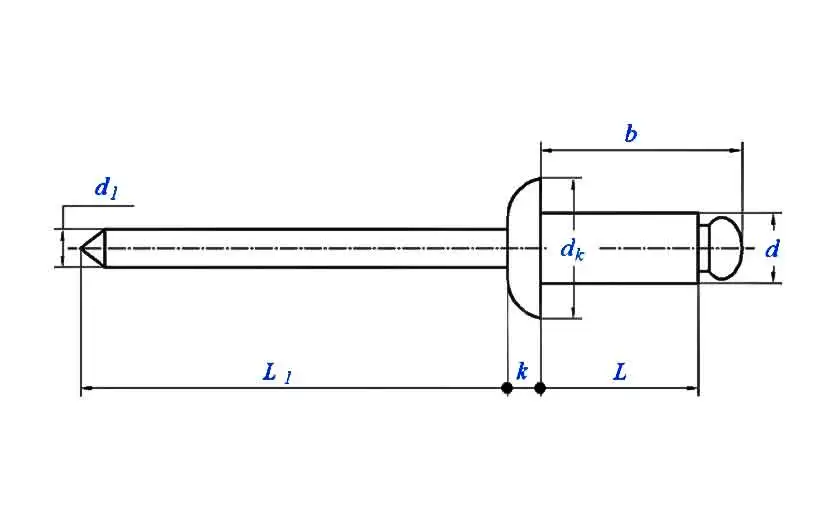

| Nominal Diameter | Φ2.4 | Φ3.2 | Φ4 | Φ4.8 | Φ6.4 | |
| d | ||||||
| d | max | 2.48 | 3.28 | 4.08 | 4.88 | 6.48 |
| min | 2.25 | 3.05 | 3.85 | 4.65 | 6.25 | |
| dk | max | 5 | 6.7 | 8.4 | 10.1 | 13.4 |
| min | 4.2 | 5.8 | 6.9 | 8.3 | 11.6 | |
| k | max | 1 | 1.3 | 1.7 | 2 | 2.7 |
| d1 | max | 1.6 | 2.1 | 2.55 | 3.05 | 4 |
| L1 | min | 25 | 25 | 25 | 27 | 27 |
| b | max | L(max)+3 | L(max)+3 | L(max)+3.5 | L(max)+4 | L(max)+5.5 |
| Shear load/N(min) | 250 | 500 | 850 | 1160 | 2050 | |
| Tensile load/N(min) | 350 | 670 | 1020 | 1420 | 2490 | |
| Mandrel break load/N(max) | 1100 | 1800 | 2700 | 3700 | 6300 | |
| Head retention test load(N) | 10 | 15 | 20 | 25 | 50 | |
| Recommended range of riveting | - | - | - | - | - | |
Aluminum domed head blind rivets offer a lightweight yet strong fastening solution, ideal for applications where weight is a critical factor. These rivets provide excellent corrosion resistance, making them suitable for use in aerospace, automotive, and lightweight construction projects.
The domed head design ensures a neat, finished look, while the aluminum construction allows for easy installation and long-term durability. These rivets are perfect for projects requiring a balance of strength and minimal weight, ensuring reliable performance in demanding conditions.
