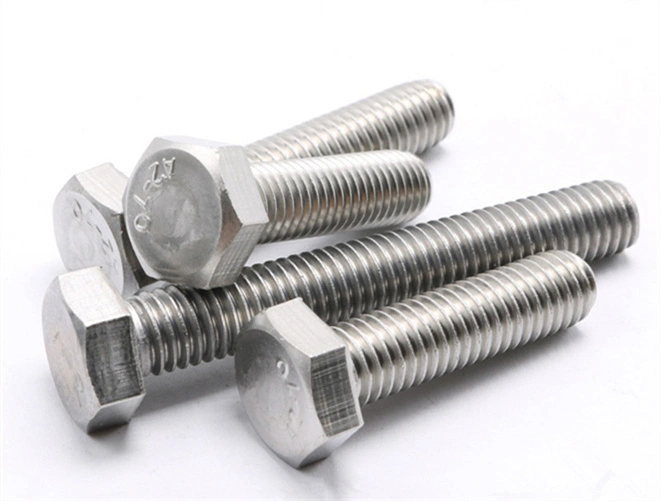

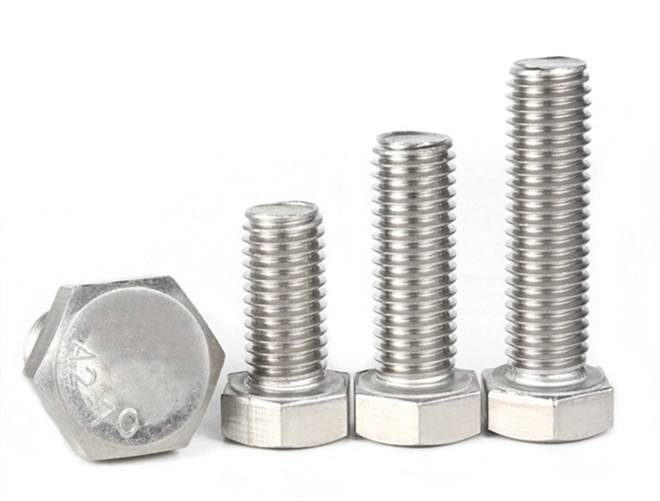

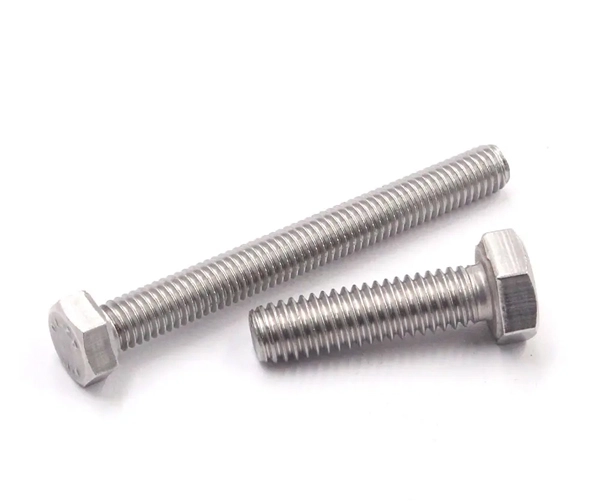

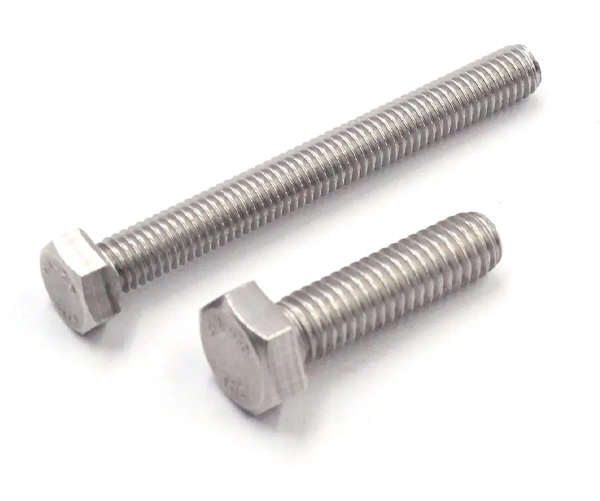

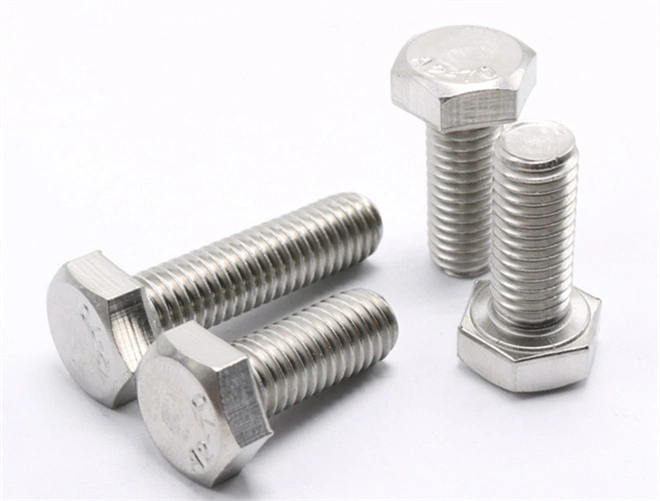

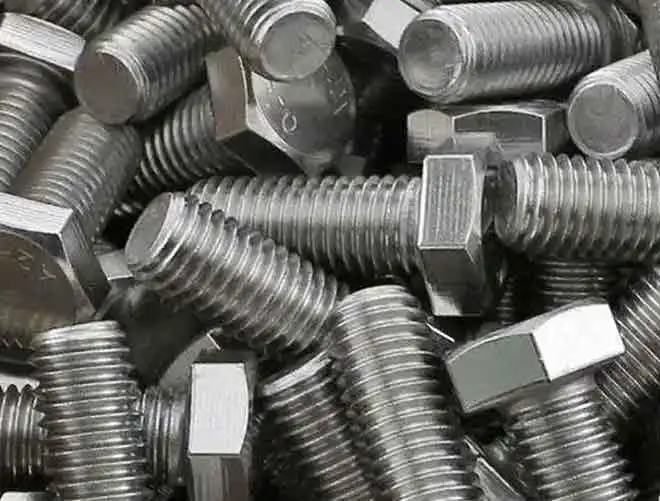

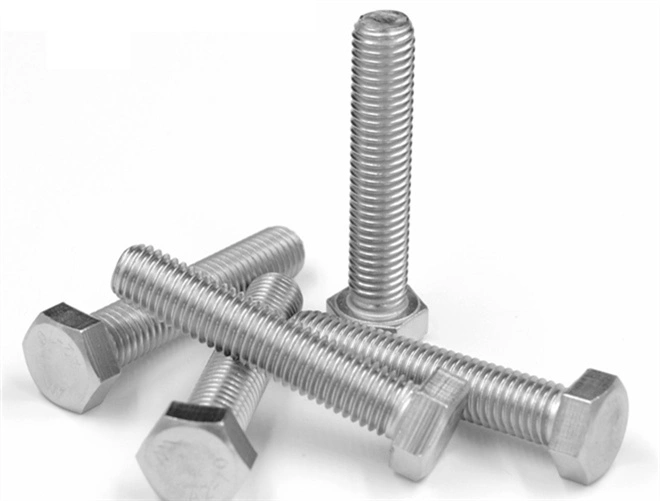

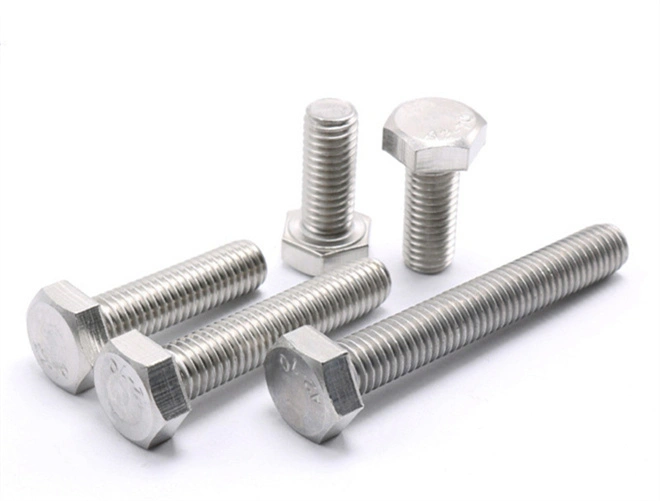

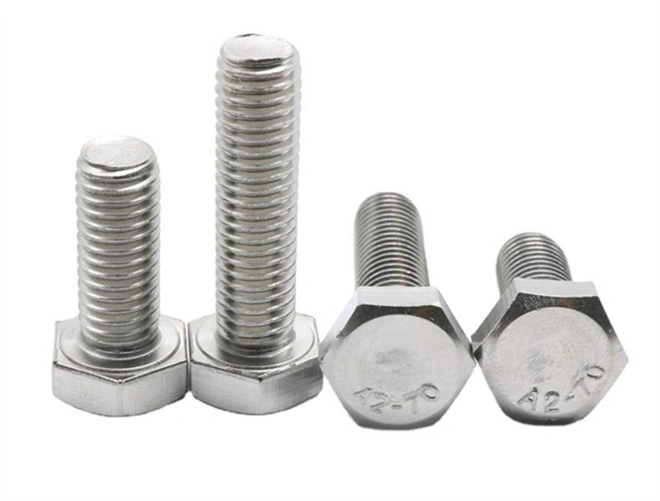

A2-70 304 Stainless Steel Hex Head Bolts

Name: A2-70 304 Stainless Steel Hex Head Bolts
Brand: Befast Co., Ltd.

A2-70 304 stainless steel hex head bolts are highly resistant to corrosion and are ideal for applications in industries like food processing, pharmaceuticals, and marine environments. These bolts provide reliable performance in harsh conditions, ensuring long-term durability.

Made from stainless steel with excellent resistance to rust and chemical exposure, A2-70 bolts maintain their integrity even in the most corrosive environments, making them the preferred choice for applications where longevity is critical.

Products

Specifications of A2-70 304 Stainless Steel Hex Head Bolts

Name	Hex Bolts	Materials	Carbon Steel/Stainless Steel
Standards	DIN ISO ANC BSW JIS etc.	Strength level	4.8 8.8 10.9 12.9 A2-70 A4-70 A4-80
Size	M3-M50	Surface finish	ZP\HDG\BLACK\Dacromet etc.
Length	15-500	Samples	Available

A2-70 304 Stainless Steel Hex Head Bolts Dimension

Hexagon Head Thick Shank Half Thread Bolts M1.6-M39 DIN 931

thread size			M1.6	M2	M2.5	M3	(M3.5)	M4	M5	M6	(M7)	M8	M10	M12
d			M1.6	M2	M2.5	M3	(M3.5)	M4	M5	M6	(M7)	M8	M10	M12
P	pitch		0.35	0.4	0.45	0.5	0.6	0.7	0.8	1	1	1.25	1.5	1.75
b	Reference	L≤125	9	10	11	12	13	14	16	18	20	twenty two	26	30
		125＜L≤200	-	-	-	-	-	-	twenty two	twenty four	26	28	32	36
		L＞200	-	-	-	-	-	-	-	-	-	-	45	49
c	minimum		0.1	0.1	0.1	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15
c	maximum value		0.25	0.25	0.25	0.4	0.4	0.4	0.5	0.5	0.5	0.6	0.6	0.6
d _a	maximum value		2	2.6	3.1	3.6	4.1	4.7	5.7	6.8	7.8	9.2	11.2	13.7
d_s	max = nominal		1.6	2	2.5	3	3.5	4	5	6	7	8	10	12
	minimum	Class A	1.46	1.86	2.36	2.86	3.32	3.82	4.82	5.82	6.78	7.78	9.78	11.73
	minimum	Class B	-	-	-	-	-	-	-	-	-	-	-	-
d_w	minimum	Class A	2.4	3.2	4.1	4.6	5.1	5.9	6.9	8.9	9.8	11.6	15.6	17.4
d_w	minimum	Class B	-	-	-	-	-	-	-	-	-	-	-	-
and	minimum	Class A	3.41	4.32	5.45	6.01	6.58	7.66	8.79	11.05	12.12	14.38	18.9	21.1
and	minimum	Class B	-	-	-	-	-	-	-	-	-	-	-	-
k	Nominal		1.1	1.4	1.7	2	2.4	2.8	3.5	4	4.8	5.3	6.4	7.5
	Class A	minimum	0.98	1.28	1.58	1.88	2.28	2.68	3.35	3.85	4.65	5.15	6.22	7.32
	Class A	maximum value	1.22	1.52	1.82	2.12	2.52	2.92	3.65	4.15	4.95	5.45	6.58	7.68
	Class B	minimum	-	-	-	-	-	-	-	-	-	-	-	-
	Class B	maximum value	-	-	-	-	-	-	-	-	-	-	-	-
k ₁	minimum		0.7	0.9	1.1	1.3	1.6	1.9	2.28	2.63	3.19	3.54	4.28	5.05
r	minimum		0.1	0.1	0.1	0.1	0.1	0.2	0.2	0.25	0.25	0.4	0.4	0.6
s	max = nominal		3.2	4	5	5.5	6	7	8	10	11	13	17	19
	minimum	Class A	3.02	3.82	4.82	5.32	5.82	6.78	7.78	9.78	10.73	12.73	16.73	18.67
	minimum	Class B	-	-	-	-	-	-	-	-	-	-	-	-
thread length b			-	-	-	-	-	-	-	-	-	-	-	-

thread size			(M14)	M16	(M18)	M20	(M22)	M24	(M27)	M30	(M33)	M36	(M39)
d			(M14)	M16	(M18)	M20	(M22)	M24	(M27)	M30	(M33)	M36	(M39)
P	pitch		2	2	2.5	2.5	2.5	3	3	3.5	3.5	4	4
b	Reference	L≤125	34	38	42	46	50	54	60	66	72	78	84
		125＜L≤200	40	44	48	52	56	60	66	72	78	84	90
		L＞200	53	57	61	65	69	73	79	85	91	97	103
c	minimum		0.15	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.3
c	maximum value		0.6	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	1
d _a	maximum value		15.7	17.7	20.2	22.4	24.4	26.4	30.4	33.4	36.4	39.4	42.4
d_s	max = nominal		14	16	18	20	twenty two	twenty four	27	30	33	36	39
	minimum	Class A	13.73	15.73	17.73	19.67	21.67	23.67	-	-	-	-	-
	minimum	Class B	-	15.57	17.57	19.48	21.48	23.48	26.48	29.48	32.38	35.38	38.38
d_w	minimum	Class A	20.5	22.5	25.3	28.2	30	33.6	-	-	-	-	-
d_w	minimum	Class B	-	twenty two	24.8	27.7	29.5	33.2	38	42.7	46.6	51.1	55.9
and	minimum	Class A	24.49	26.75	30.14	33.53	35.72	39.98	-	-	-	-	-
and	minimum	Class B	-	26.17	29.56	32.95	35.03	39.55	45.2	50.85	55.37	60.79	66.44
k	Nominal		8.8	10	11.5	12.5	14	15	17	18.7	twenty one	22.5	25
	Class A	minimum	8.62	9.82	11.28	12.28	13.78	14.78	-	-	-	-	-
	Class A	maximum value	8.98	10.18	11.72	12.72	14.22	15.22	-	-	-	-	-
	Class B	minimum	-	9.71	11.15	12.15	13.65	14.65	16.65	18.28	20.58	22.08	24.58
	Class B	maximum value	-	10.29	11.85	12.85	14.35	15.35	17.35	19.12	21.42	22.92	25.42
k ₁	minimum		5.96	6.8	7.8	8.5	9.6	10.3	11.7	12.8	14.4	15.5	17.2
r	minimum		0.6	0.6	0.6	0.8	0.8	0.8	1	1	1	1	1
s	max = nominal		twenty two	twenty four	27	30	32	36	41	46	50	55	60
	minimum	Class A	21.67	23.67	26.67	29.67	31.61	35.38	-	-	-	-	-
	minimum	Class B	-	23.16	26.16	29.16	31	35	40	45	49	53.8	58.8
thread length b			-	-	-	-	-	-	-	-	-	-	-

Full Thread Hexagon Head Bolts Grade A and B DIN 933

Thread specification			M1.6	M2	M2.5	M3	(M3.5)	M4	M5	M6	(M7)	M8	M10	M12	(M14)	M16
d			M1.6	M2	M2.5	M3	(M3.5)	M4	M5	M6	(M7)	M8	M10	M12	(M14)	M16
P	pitch		0.35	0.4	0.45	0.5	0.6	0.7	0.8	1	1	1.25	1.5	1.75	2	2
a	maximum value		1.05	1.2	1.35	1.5	1.8	2.1	2.4	3	3	3.75	4.5	5.25	6	6
c	minimum		0.1	0.1	0.1	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.15	0.2
c	maximum value		0.25	0.25	0.25	0.4	0.4	0.4	0.5	0.5	0.5	0.6	0.6	0.6	0.6	0.8
d _a	maximum value		2	2.6	3.1	3.6	4.1	4.7	5.7	6.8	7.8	9.2	11.2	13.7	15.7	17.7
d_w	Class A	minimum	2.4	3.2	4.1	4.6	5.1	5.9	6.9	8.9	9.6	11.6	15.6	17.4	20.5	22.5
d_w	Class B	minimum	-	-	-	-	-	5.7	6.7	8.7	9.4	11.4	15.4	17.2	20.1	twenty two
and	Class A	minimum	3.41	4.32	5.45	6.01	6.58	7.66	8.79	11.05	12.12	14.38	18.9	21.1	24.49	26.75
and	Class B	minimum	-	-	-	-	-	7.5	8.63	10.89	11.94	14.2	18.72	20.88	23.91	26.17
k	Nominal		1.1	1.4	1.7	2	2.4	2.8	3.5	4	4.8	5.3	6.4	7.5	8.8	10
	Class A	minimum	0.98	1.28	1.58	1.88	2.28	2.68	3.35	3.85	4.65	5.15	6.22	7.32	8.62	9.82
	Class A	maximum value	1.22	1.52	1.82	2.12	2.52	2.92	3.65	4.15	4.95	5.45	6.56	7.68	8.98	10.18
	Class B	minimum	-	-	-	-	-	2.6	3.26	3.76	4.56	5.06	6.11	7.21	8.51	9.71
	Class B	maximum value	-	-	-	-	-	3	3.74	4.24	5.04	5.54	6.69	7.79	9.09	10.29
k ₁	minimum		0.7	0.9	1.1	1.3	1.6	1.9	2.28	2.63	3.19	3.54	4.28	5.05	5.96	6.8
r	minimum		0.1	0.1	0.1	0.1	0.1	0.2	0.2	0.25	0.25	0.4	0.4	0.6	0.6	0.6
s	max = nominal		3.2	4	5	5.5	6	7	8	10	11	13	17	19	twenty two	twenty four
	Class A	minimum	3.02	3.82	4.82	5.32	5.82	6.78	7.78	9.78	10.73	12.73	16.73	18.67	21.67	23.67
	Class B	minimum	-	-	-	-	-	6.64	7.64	9.64	10.57	12.57	16.57	18.48	21.16	23.16
Thousand pieces of steel weight ≈kg			-	-	-	-	-	-	-	-	-	-	-	-	-	-

Thread specification			(M18)	M20	(M22)	M24	(M27)	M30	(M33)	M36	(M39)	M42	(M45)	M48	(M52)
d			(M18)	M20	(M22)	M24	(M27)	M30	(M33)	M36	(M39)	M42	(M45)	M48	(M52)
P	pitch		2.5	2.5	2.5	3	3	3.5	3.5	4	4	4.5	4.5	5	5
a	maximum value		7.5	7.5	7.5	9	9	10.5	10.5	12	12	13.5	13.5	15	15
c	minimum		0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.2	0.3	0.3	0.3	0.3	0.3
c	maximum value		0.8	0.8	0.8	0.8	0.8	0.8	0.8	0.8	1	1	1	1	1
d _a	maximum value		20.2	22.4	24.4	26.4	30.4	33.4	36.4	39.4	42.4	45.6	48.6	52.6	56.6
d_w	Class A	minimum	25.3	28.2	30	33.6	-	-	-	-	-	-	-	-	-
d_w	Class B	minimum	24.8	27.7	29.5	33.2	38	42.7	46.5	51.1	55.9	59.9	64.7	69.4	74.2
and	Class A	minimum	30.14	33.53	35.72	39.98	-	-	-	-	-	-	-	-	-
and	Class B	minimum	29.56	32.95	35.03	39.55	45.2	50.85	55.37	60.79	66.44	71.3	76.95	82.6	88.25
k	Nominal		11.5	12.5	14	15	17	18.7	twenty one	22.5	25	26	28	30	33
	Class A	minimum	11.28	12.28	13.78	14.78	-	-	-	-	-	-	-	-	-
	Class A	maximum value	11.72	12.72	14.22	15.22	-	-	-	-	-	-	-	-	-
	Class B	minimum	11.15	12.15	13.65	14.65	16.65	18.28	20.58	22.08	24.58	25.58	27.58	29.58	32.5
	Class B	maximum value	11.85	12.85	14.35	15.35	17.35	19.12	21.42	22.92	25.42	26.42	28.42	30.42	33.5
k ₁	minimum		7.8	8.5	9.6	10.3	11.7	12.8	14.4	15.5	17.2	17.9	19.3	20.9	22.8
r	minimum		0.6	0.8	0.8	0.8	1	1	1	1	1	1.2	1.2	1.6	1.6
s	max = nominal		27	30	32	36	41	46	50	55	60	65	70	75	80
	Class A	minimum	26.67	29.67	31.61	35.38	-	-	-	-	-	-	-	-	-
	Class B	minimum	26.15	29.16	31	35	40	45	49	53.8	58.8	63.1	68.1	73.1	78.1
Thousand pieces of steel weight ≈kg			-	-	-	-	-	-	-	-	-	-	-	-	-

Benifits of A2-70 304 Stainless Steel Hex Head Bolts

Befast’s A2-70 304 stainless steel hex head bolts offer superior corrosion resistance, making them perfect for use in demanding environments. Whether you need bolts for outdoor, marine, or industrial applications, these bolts perform consistently and maintain their strength over time.
Our expert team conducts rigorous quality checks, including chemical composition and corrosion resistance testing, ensuring each bolt meets high standards. With our efficient production, we can handle large orders while maintaining competitive pricing.
